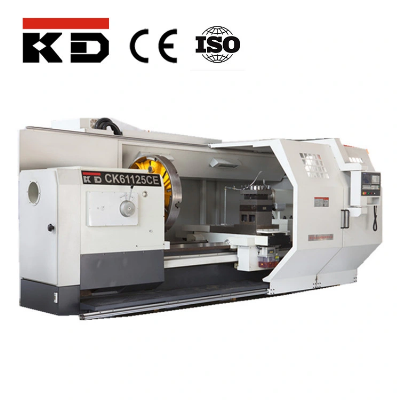

Large Size CNC Lathe Machine Ck61125CE/2000

 Large Size CNC Lathe Machine Ck61125CE/2000Product FeaturesProduct SpecificationsMODELSCK61100CECK61125CECK61140CECAPACITY   Max. swing over bedФ1000 mmФ1250 mmФ1400 mmMax. swing over carriageФ620 mmФ815 mmФ990 mmWidth of bed755 mmMax. length of workpiece1.5/ 2/ 3/ 4/ 5/ 6/ 8/ 10 mMax. turning length1.3/ 1.8/ 2.8/ 3.8/ 4.8/ 5.8/ 7.8/ 9.8 mMax. weight between centers5000 kgSPINDLE   Spindle noseA2-15Spindle boreФ130 mmSpindle tapperMetric Ф140 1:20Steps of spindle speed(manual)2 steps (manual)Range of spindle speed2.5~34, 20~270 rpmFEED   Rapid feed for axis Z8 m/minRapid feed for axis X5 m/minTRAVEL   Max.travel of Z axis1.55/2.05/3.05/4.05/5.05/6.05/8.05/10.05 mMax.travel of X axis580 mm685 mm820 mmTOOL POST   Tool post stations4Tool cross section40×40 mm50×50 mmTAILSTOCK   Tailstock sleeve outer dia.Ф160 mmTailstock sleeve taper boreMetric Ф80Tailstock sleeve travel300 mmOTHERS   Mi. Input0.001 mmMain motor power22 kWCoolant pump power370 wChuck diameterФ1000mm (4-jaw chuck)Ф1250mm (4-jaw chuck)  Company Profile
