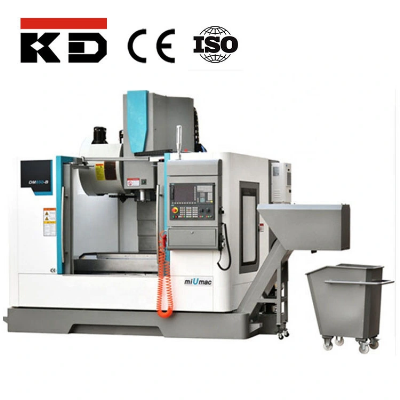

Kdvm800la Vmc Machine Price CNC Milling Machine

 Kdvm800la Vmc Machine Price CNC Milling MachineProduct FeaturesProduct SpecificationsMODELSDM852DM1052TRAVEL  X axis800mm1000mmY axis520mmZ axis520mmSpindle center to column550mmSpindle end to table150-670mmTABLE  Table size950×510mm1130×510mmT-slot(width×number×space)18mm×5×100mmMax. table loading800kgSPINDLE  Taper bore of spindleBT40Spindle power11/15kw (FANUC)Spindle speed8000rpmFEED  X/Y/Z fast feed30/ 30/ 30m/minMotor power/torque of X/Y/Z3/3/3 kw (20Nm)Guide ways number of X/Y/Z3/3/2 (ball type)Linear guide width of X/Y/Z35/35/35mmDiameter and screw pitch of X/Y/Z lead screwФ40x12mm (C3 level)Bearing number of X/Y/Z lead screw7/7/7ATC  Tool number24Max. tool length300mmMax. tool weight8kgTime (tool-tool)2sACCURACY  Positioning≤0.006mmRepeatability(X/Y/Z)(ISO)≤0.004mmOTHERS  Pneumatic boosting cylinder3.5TPower of coolant pump550wCapacity of lubrication pump2LCapacity of coolant tank200LMin. Input0.001mmOverall dimension (L x W x H)3750x2300x2700mm4300x2300x2700mmNet weight5150kg5480kg Company Profile
