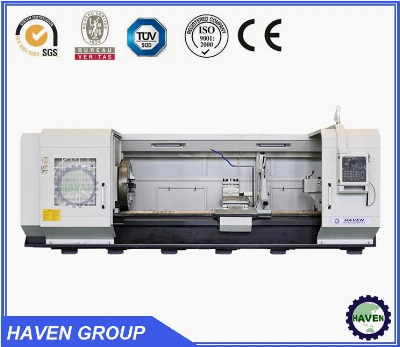

Horizontal Type CNC Lathe Machine

                                                        CNC Horizontal Lathe MachineMain Introduction :CK series CNC lathe is universal standard automatic machining equipment for metal processing , suitable for to process big size shaft and plate work piece, with the main characters such as reliable structure, easy operating and high accuracy, this series lathe machine is mainly used for turning the internal and external cylindrical surface, conical surface and other rotating surface, as well as turning various type of threads etc.Main Parameter:                                                                 SpecificationCK6180CK6180CK61100CK61100ManualHYD.ManualHYD.CapacitySwing over bedmm8001000Swing over cross slidemm480680Distance between centersmm1000-80001000-8000Guideway widthmm600600Max. load capacityT44SpindleSpindle boremm104104Spindle bore taper-Metric φ120/MT5Metric φ120/MT5Spindle nose type-C11C11Spindle speed steps-VF. 3 stepsHYD. 4 stepsVF. 3 stepsHYD. 4 stepsSpindle speed rangerpm10-80017-80010-80017-800ChuckMmφ400 3-jaw manualφ400 3-jaw manualTurretTurret/tool post-NC turret 4 positionNC turret 4 positionTool shank sizemm32 x 3232 x 32 Feed X axis travelmm420520Z axis travelmm                   850/1350/1850/2850/3850/4850/5850/6850/7850X axis rapid traversemm/min1000010000Z axis rapid traversemm/min80008000TailstockTailstock quill diametermmφ120φ120Tailstock quill taper-MT6MT6Tailstock quill travelmm250250 MotorMain spindle motorkw1515Coolant pump motorkw0.1250.125                      SpecificationUNITCK61100CK61125CK61140CK61160CapacitySwing over bedmm1000125014001600Swing over cross slidemm61085010001200Distance between centersmm1500-80001500-80001500-80001500-8000Guideway widthmm755755755755Max. load capacityT6/106/106/106/10SpindleSpindle boremm130130130130Spindle bore taper-Metric φ160/MT6Metric φ160/MT6Metric φ160/MT6Metric φ160/MT6Spindle nose type-A2-15A2-15A2-15A2-15Spindle speed steps-VF. 4 stepsVF. 4 stepsVF. 4stepsVF. 4stepsSpindle speed rangerpm4-3004-3004-3004-300Chuckmmφ1000 4-jaw manualφ1000 4-jaw manualTurretTurret/tool post-NC turret 4 positionNC turret 4 positionTool shank sizemm40 x 4040 x 4040 x 4040 x 40FeedX axis travelmm520620720720Z axis travelmm                                                   1350/2850/3850/4850/5850X axis rapid traversemm/min4000400040004000Z axis rapid traversemm/min6000600060006000TailstockTailstock quill diametermmφ160φ160φ160φ160Tailstock quill taper-MT6MT6MT6MT6Tailstock quill travelmm300300300300MotorMain spindle motorkW22222222Coolant pump motorkW0.250.250.250.25
