KGS1224AHD-300X600mm Three- Axis Surface Grinder Surface Grinding Machine Manufacturer

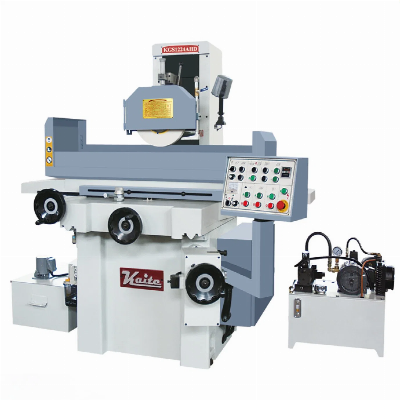

1. Picture AHD:  3-axis automatic feed  hydraulic automatic longitudinal feedelectronic automatic cross feedincremental auto down feed (use hydraulic system and gear box) 2. ParametersParametersUnitKGS1224AHDWorking Surface of Tablemm300×600   (12"×24")Max.Table Travelmm660Max.Cross Travelmm340Distance Between Table Surface and Spindle Centermm520Max.Table Loadkgs420T-Solt (Number×Width)mm1×14Table Speedm/min5~25Cross feed Handwheel1gardmm0.02 1 rev 5Automatic Cross feed of Saddlemm0.5~12Power Cross Feed50HZmm/min790 60HZ 950Grinding Wheel Dimensionsmm355×40×127Spindle Speed50HZrpm1450 60HZ 1740Vertical Handwheel1gardmm0.001 1 rev 0.5Automatic Down Feed Ratemm0.005~0.025Power Head Incrementmm/min230Spindle Motorkw4Vertical Motorw90Hydraulic Motorkw1.5Dust Collection Motorw550Coolant Motorw90Crossfeed Motorw90Floor Spacemm2600×2500Packing Dimensionsmm2080×1850×2195Net Weightkgs1910Gross Weightkgs22103. Main Configuration of Grinding Machine1. Spindle motor: ABB brand.2. Spindle bearing: NSK brand P4 grade precision ball bearing which from Japan.3. Cross screw: P5 grade precision ball screw.4. Main electrical components: SIEMENS brand.5. Main hydraulic components: brand from TAIWAN.4. Standard Accessories       1Grinding wheel2Wheel flange3Wheel balancing base4Wheel balancing arbor5Extractor6Diamond dresser7Leveling pad8Anchor bolt9Tool box with tools10Electric magnetic chuck   11Cooling system12Working light                  5. Optional AccessoriesSerial No.Name of Article1rear splash guard         2DRO (digital read out)3overhead parallel dresser  4hydraulic tank oil cooling5cooling & suction device    6magnetic separator        7cooling magnetic paper filterNote6 and 7, select one just OK.6. Feature1. Well designed cast iron structure provides excellent dampening2. Flange mount spindle cartridge for superior side grinding rigidity 3. Grinding spindle features low-maintenance preloaded high precision angular ballbearings(NSK P4 grade)4. "V" and flat type guide way which precision hand scrapped turcite saddle ways for smooth and long lasting performance5. Table guideways are hardened, ground and counter-laminated with PTFE(TEFLON) to ensure high wear-resistance6. Centralized automatic lubrication system ,supplies oil to guide-ways and lead-screws as the machine operates. This system ensures all the critical components are lubricated with the right amount of oil at all times7. Separate hydraulic tank prevents heat and vibrations from being transferred to the machine8. Electric components and functional modules are well arranged and packed in the electric  cabinet, making maintenance and trouble-shooting easily accessible9. Safety 24V control circuit power7. Company & FactoryNantong Kaite Machine Tool Co., Ltd. A Sino-US joint venture machine tool company with KENT INDUSTRIAL (USA) INC. KAITE specializes in manufacturing precision surface grinding and milling machine since 1999.KAITE supply the USA quality machines and with China price.  KAITE is located in Nantong city, Jiangsu Province where near Shanghai city and welcome to visit us!8. Delivery Picture
