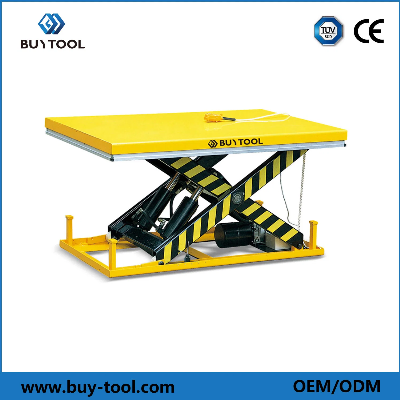

Heavy Duty Hydraulic Scissor Lift Table

Hydraulic Scissor Lift Table/Lifting TableHeavy duty design.With safety guard.With anti-explosion valve.Customs' special requirements are acceptable.HW series lift tables meet EN norm and ANSI/ASME safety standards.These models can be used in above-floor or in-floor pit applications.Standard Safety FeaturesUpper platform lifted with aluminum safety bar preventing descent on contact with obstructions.Low-tention(24V) control box with up-down buttons.Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.Safety clearance between scissors to prevent trapping during operation.Other Standard FeaturesSelf lubricating bushings on pivot points.Removable lifting eye to facilitable handling and lift table installation. ModelCapacityLowered HeightRaised HeightPlatform SizeBase Frame SizeLift Time Power packNet Weight kg(mm)(mm)(mm)(mm)(second) (kg)HW100110002051000820×1300640×124020-25380v/50HZ,AC1.1kw160HW100220510001000×1600640×124020-25186HW10032401300850×1700640×158030-35200HW100424013001000×1700640×158030-35210HW10052401300850×2000640×158030-35212HW100624013001000×2000640×158030-35223HW200120002301050850×1300785×122020-25380v/50HZ,AC1.5kw235HW200223010501000×1600785×122020-25268HW20032501300850×1700785×160025-35289HW200425013001000×1700785×160025-35300HW20052501300850×2000785×160025-35300HW200625013001000×2000785×160025-35315HW4001400024011001200×1700900×160030-40380v/50HZ,AC2.2kw375HW400224011001200×2000900×160030-40405HW400330014001000×2000900×200045-50470HW400430014001200×2000900×200045-50490HW400530014001000×2200900×200045-50480HW400630014001200×2200900×200045-50505HW400730014001500×17001200×160045-50420HW400830014001800×22001500×200045-50540Lift tables with rollersLift table with turnable top platform:Electric Lift Table with Protection Skirt and Wheels:Electric Lift Table with Ball Table:FAQ:Q: What about the quality of the lift tables?A: Our lift tables are CE approved, and we have five inspection steps before shipment:1. Inspect the raw material in accordance with ISO9001;2. Strict inspection in the whole production process;3. Load limit test when assembling finished;4. 100% strict inspection of products before shipment;5. If needed, inspection by buyer.Q: How long is the quality guarantee?A: All of our lift tables carry one-year warranty.Q: What's the leadtime?A: Normally 30 days.If you order more than 5 itmes mixed in one container, it will be 45 days.If you order one item in one container, it will be 20 days.
