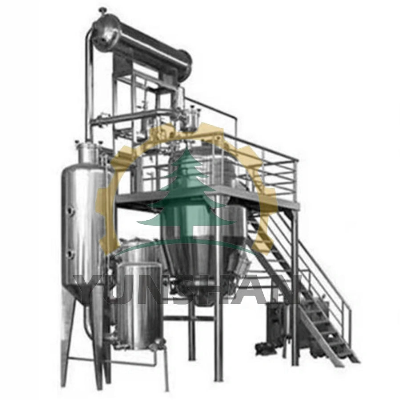

China Manufacture New Design 100-500L Essential Oil Extraction Machine

China manufacture new design 100-500L essential oil extraction machineProduct Description     This set of equipment to extract the essential oil of process is by steam distillation method, steam and entered from the top of the export of oil and gas condensate in the condenser, because oil relative density is lighter than water, so it will float on the surface of the water, separated by this method The machine can realize three distillation method: Distillation in water,distillation on water (impermeable distillation), steam distillationModelTQ-100Power(kw)9Pressure(MPa)Atmospheric pressureDistillation temperatureºC100Steam consumption(kg/h)12.5Body size(mm)500x750x4Overall dimensions(mm)1200x700x2200Steam pipe diameterDN20Discharge pipe diameterDN32Inlet pipe diameterDN20Feed water pump power(w)300ModelTQ-300Power(kw)24Pressure(MPa)Atmospheric pressureDistillation temperatureºC100Steam consumption(kg/h)33Body size(mm)700x800x4Overall dimensions(mm)1500x800x2300Steam pipe diameterDN25Discharge pipe diameterDN32Inlet pipe diameterDN15Feed water pump power(w)300ModelTQ-500Power(kw)36Pressure(MPa)Atmospheric pressureDistillation temperatureºC100Steam consumption(kg/h)50Body size(mm)800x1000x5Overall dimensions(mm)2000x2000x2500Steam pipe diameterDN25Discharge pipe diameterDN32Inlet pipe diameterDN25Feed water pump power(w)750Advantage1.Stainless steel extraction basket, corrosion resistant & easy to clean2.Crane system to make sure easier operation and less labor, automatic lifting is optional.3.Automatic control, operation is simple and flexible, and one person can easily complete the entire production.4.Lab grade glass pipeline diameter < 20mm, special-structured oil-water separator is used to facilitate the separation and collection of essential oils.5.The lid of extraction tank is quick-opening design, easy to open & close lock.6.Ball valve design, continuous operation7.Lab - pilot - industry customization with greatest flexibilityProcess 1.Charging plant materials + water into essential oil extracting tank. 2.By steam distillation or water distillation, the steam passes through plants material and vapourises oil.3.Mixtures of steam and oil vapors go into condenser ( chilling unit ).4.After cooling, mixture of steam and oil vapours formed.5.Separation of oil and water by separator.6.Achieve essential oil.7.Dregs dischargingRelated ProductsCompany ProfileHenan Yunshan Machinery Equipment CO.,Ltdis a specialized enterprise focusing on research,design manufacture, installation and sales of grain and oil sto-rage silo and project, grain drying equipment and project, edible oil processing equipment, extraction equipment, refining equipment, separation equipment and project, environmental protection equipment and project. "With high quality and first-class service, every customer can enjoy the fruits of modern agricultural science and technology" is our company's vision...Packaging and transportationFAQQ1: What's your advantage?A: Honest business with competitive price and professional service on export process.Q2:Is that factory price?A: We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed. Sure,welcome to you visit our factory at any time.03:How is the quality of your products?A: Our products are manufactured strictly according to national and international standard,and we take a test on every equipment before delivery.Q4:How long is your guarantee?A:One Year guarantee.We shall supply free exchange for spare parts.After this period,we shall charge at low cost to keep after service.You will be welcome to contact us with any problem might occurred.Q5: Can you install the machine in local place?A:We will send our engineers to local place to help installing the machine and technical guidance.Q6:what kind of payment does your company support?A: TT,Trade Assurance, L/C, Cash,Western Union are all accepted, if you have other payment,please contact me.
