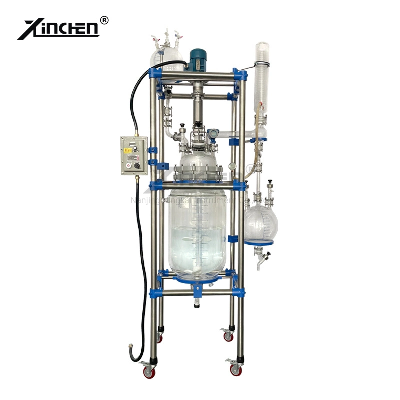

Xinchen Lab Double Chemical Jacketed Borosilicate Pilot Glass Reactor

Product DescriptionThe Glass Reactor can be designed to be single, double or triple wall glass reactor.The reaction menstruum can be put into the inner layer to do stirring, interlayer can be connected with cold and heat source ( frozen liquid, hot water or hot oil) to do circulating heating or cooling reaction. Under seting the constant temperature, and in sealed glass reactor, stirring reaction can be carried out at atmospheric pressure or negative pressure conditions according to the operating,and also can carry out reflux and distillation of the reaction solution. Glass reactor is an ideal production equipment for the modern fine chemical, pharmaceutical and biological synthesis of new materials.Product Parameters ModelXC-1LXC-2LXC-3LXC-5LXC-10LXC-20LVolume (L)12351020Jacket Volume (L)0.30.60.91.536Lid Diameter (mm)150150150180265265External diameter of the inner vessel (mm)113135150180230290External diameter of the outer vessel (mm)150180200230290330Vessel height (mm)250280300400450550Motor power (W)909090120120140Vacuum degree(Mpa)0.096Rotation Speed (rpm)50-80050-80050-60050-60050-60050-600Torque (Ncm)303030162162210Dimensions(mm)330*350*800320*350*800320*350*900450*450*1100500*500*1200500*500*1450Power220V 50HzModelXC-30LXC-50LXC-80LXC-100LXC-150LXC-200LVolume (L)305080100150200Jacket Volume (L)101624304560Lid Diameter (mm)265265340340340340External diameter of the inner vessel (mm)330365410460550600External diameter of the outer vessel (mm)365410460500600650Vessel height (mm)7308509509509801200Motor power (W)140180250250400750Vacuum degree(Mpa)0.096Rotation Speed (rpm)50-600Torque (Ncm)210300350350400400Dimensions(mm)500*500*1600600*600*1800700*700*2400700*700*2600800*800*28001200*900*3200Power220V 50HzProduct Features1.The whole stainless steel column, mobile framework, 4-6 or more opening ports of the reaction kettle lid, with full set of glass parts for reflux, adding liquid, temperature measurement, and so on.2. Use G3.3 high borosilicate glass, with good chemial and physical properties.3. Alloy steel mechanical seal, PTFE connector, to maintain a high precision seal in the working condition.4. With PT100 sensor probe, high precision temperature measurement, small errors, high efficiency.5. AC reducer motor, strong torsion, no noise.6. PTFE discharge value, moveable interface, discharging completely and quickly.7. Strong design ability, support customise on request. (such as PH meter, sand core filter etc)8. Electrical explosion-proof model available.Project Photos We professional manufacture different kinds of glass reactor systems.We have strong design, manufacture and site installation ability.As a manufacturer not trading company, we can supply you with high quality , best price and fast delivery service.1.Packing method: Standard export wooden box or base on your requests.2. Shipping method: By Express door to door, or by ship, based on your choice.1) If delivery goods by Express, door to door service , generally about 5-7 working days reach.2) If by air, deliver goods to your destination airport, about 5 working days reach.3) If by sea, deliver goods to your local seaport, specific days and cost is based on different shipping line.3. WarrantyAny broken or damages of glass parts caused by delivery, will be afforded by Nanjing Ningkai company.
