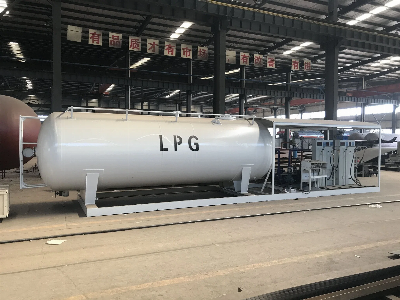

5cbm LPG Skid-Mounted gas refueling StationTechinical Data as follows:Specification of 2.5T/5CBM LPG Storage TankVolume of Tank5 CBMFilling Weight2500 kgTank Weight2030 kgThickness of Shell (mm)10 mmThickness of Endplate (mm)10 mmTank Diameter (mm)1600 mmOverall Dimensions (mm) (length x width x height)3070x1620x2210 mmMaterial of Tank and Main Pressure PartsQ345R Steel Specially for Pressure Vessels Design Pressure1.77 MPaHydraulic Test Pressure2.22 MPaFilling MediumLiquefied Petroleum Gas ( Propane)Medium Density420-590 kg/ cbmFilling Ratio0.95Corrosion Allowance1 mmService life15 yearsMain parts of LPG TankItemSpecificationQuantity(pc)Discharge PipeDN501Inflow PipeDN501OutletDN501Gas phase balance pipesDN502ManholeDN4501Drain HoleDN501Main accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge.Skid Parts List are showed in separated page below.LPG Skid Part listItemModel NumberQuantityLPG Tanker/1 unitLPG Filling Machine with scale(Can fill 3kg to 150kg gas cylinder)BCS-1501 unitFilling pump(Blackmer Brand) LGLD2E1 PieceAnti-explosive motor(ABB brand)M2JA160M8B1 PieceWater Spraying Cooling System/1 setAlerter QJ-D-99F2 PieceBall floating level gaugeUQZ-2.5P1 UnitSafety valveA42F-25 DN501 PieceCheck ValveH42N-40DN502 Pieces Stop valveJ41N-40 DN503 PiecesJ41N-40 DN322 PieceJ41N-40 DN253 PiecesPipe safety valveA21F-25 DN151 PieceUnloading pipelineL=4M DN50/DN251 SetShockproof pipeL=500mm DN502 PiecesElbow cap DN652 Pieces DN5010 Pieces Flange2.5MPaDN506 Pieces2.5MPaDN322 Piece2.5MPaDN256 PiecesEquipment base /1 UnitPipes/1 Set Chengli Special Automobile Co., Ltd is a professional manufacturer of all kinds of special truck and trailer as well as other special equipment. LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life. Our liquefied gases tank can work In low pressure at room temperature, the volume from 5 cubic meters --- 100 cubic optional.If you have other speical requirement, we can customize for you.Our main products:1. Dump Truck / Tipper Truck/Side Tipper/End Tipper2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine3. Truck with crane / Truck mounted crane4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck5. Water truck / Water Tank Truck / Water Sprinkler Truck6. Concrete Mixer Truck7. Van truck / Insulated truck/ Refrigeration truck8. Fecal suction truck / Sewage suction truck,9. Cement Powder Tank truck/ Bulk cement truck10. High-altitude operation truck,11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
