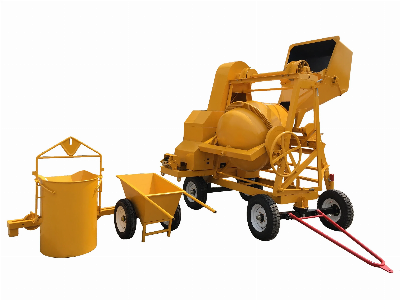

Topmac Brand 510 Lt Concrete Mixer with Winch

Tilting Drum Concrete Mixer With Winch/Elevator And AccssoriesModel TDCM510-11DLDescriptionsMixer with hoist system, Which is the mixer and winch designed together, 2 Functions can be realized in one machine. And single diesel engine can drive both the mixer and the hoisting system.The hoist frame is fixed on the building, so the hoist system goes up with the building. It can lift not only the mixture ,also blocks,sand; or other construction material.Advantages1. Winch / Elevator: The winch is placed in an innovative way to minimize the operating hazards of the bucket and the barrel. Our design of the winch includes automatic breaking and a safety cover around the winch to reduce any damage to the sprockets in case the winch-rope breaks.2. Other Features:Wheel breakDrum lockSquared drum nut with a screw to avoid bearing damageAll sprockets are manufactured by machinesA cover around the pinion gear, the steering gear, the cable buckets, and theelevator to insure operator safety and durability of the mixerTechnical ParametersModelTDCM510-11DLPower Changfa CF1100BNM Diesel EnginePower sourceDiesel Or Electric MotorDrum total volume510 LUnmixed capacity 325 LMixed capacity 200 LMixing time40 sec.Capacity per hour6~8 cbmDimension 1930×2300×2950mmSteel thickness of drum4mmOperationManual FeedWeight 1250kg/1300kgLift high 24mLift weight150LDouble framework distance2000mmContainer Loading Plan  1×20' container can be loaded with 3 Units1×40H' container can be loaded with 8 Units
