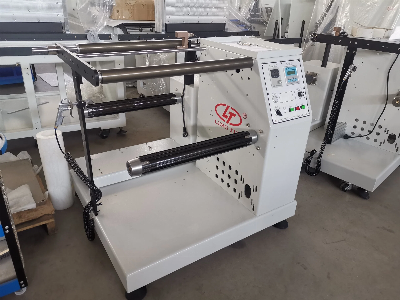

Roll to Roll Rewinding Machine with Edge Control

Automatic Corona Webguide and Slitting Rewinding Machine1. Unwinding & rewinding air shaft 3" diameter.2. Air shaft for max.roll width 400mm,600mm,900mm, max.roll diameter 550mm, max.roll weight 70kg.3. Sensor adopted for edge control. It works for transparent and non-transparent materials.4. Magnetic powder brake is used for tension control during rewinding process.5. Machine automatic stop when the rewinding finish.6. Count meter function, sample slitting function, dust cleaning function are available for option.Application :This automatic rewinding machine with web guide is widely used to rewind various soft materials in roll form, such as plastic film, paper, medical gauze, non-woven fabric , aluminum foil, etc.Technical Information:ModelLTD-400BLTD-600BLTD-900BMax.Paper Width400mm600mm900mmAllowable Weight40kg70kg150kgMax Diameter550mm550mm550mmPower Supply1kw1kw1kwTension0-25N0-25N0-25NNet Weight300kg350kg500kgMachine Size(L1010xW950xH1120)mm(L1010xW950xH1120)mm(L1450xW1300xH1200)mmDetailed Images:Automatic rewinding machine with web guide and count meter function. Automatic rewinding machine with web guide and slitting function.Automatic rewinding machine with web guide and dust cleaning function.
