Ball Bearing Glass Grinder 10 ABB Spindles Motor

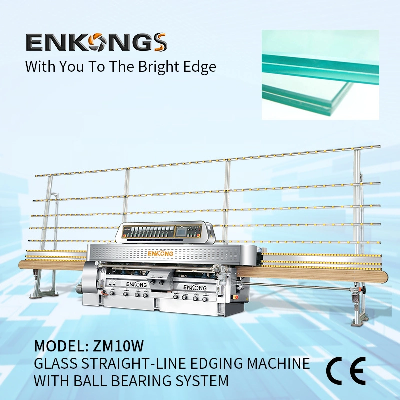

ZM10W Glass Straight Line Edging Machine Easy to OperateTechnical Specifications (ZM10W) Spindles10 pcsProcessing glass thickness3-30mmAngle of arris45°Min.size of glass60mm*60mmProcessing speed0.5~5.0 m/minsInstalled power23.1 KWDimension7820×1400×2850mmWeight5000 kgWheels disposal:No.1Diamond wheelNo.2Diamond wheelNO.3Resin wheel (Rear arris)No.4Fine grinding wheelNo.5Resin wheel (front arris)No.6Fine grinding wheel   No.7Resin wheelNO.8Fine grinding wheel No.9Polishing wheelNO.10Polishing wheel.General description1,ZM10W is suitable for processing straight-line edge 45°arris on glass.2,Rough grinding, find grinding and polishing of the pencil edge can be finished at one time.3,A special design of the in-feed section for controlling the grinding amount of glass without adjusting each spindle individually.4,Indepent wool felt wheel and the cerium water recirculation system make the flat edge more shining.5,With ABB spindle motors and the conveyor system running on ball bearing units, this machine has a much stronger loading and delivering capacity, thus it is able to process mini piece and extremely thick piece with high precision and good water-proofing.6,Input and output conveyors adopt timing belt which can improve the stability of transmission.7,Speed is adjusted by frequency inverter; PLC with pneumatic polishing.
