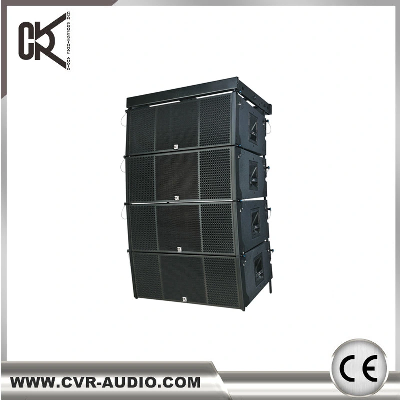

Dual 12 Inch Professional Neodymium Line Array

Product DescriptionThe W-9B line array which is made of two 12 inch neodymium woofers, two high sensitivity 8'' midrange speaker units, two 3'' titanium neodymium compression drivers, the drivers by two independent plane wave converter, with a innovative directly horn which generate parallel wave in the front. It's neodymium line array  W-9B professional line array is trapezoid shaped, hi, mid, low driver units all with independent horn output, which improved the speaker sound, maximum lowed the intervention between the drivers. The precise positioning position between the driver units which verified the speaker box very small, but also to ensure the gap between the cabinet to cabinet minimize. Even several boxes combination can also with a precise point forming a line array group, resulting in excellent sound quality, each box is installed with hanging assembly, can be convenient for hanging, assembling, which application W-9 line array performance excellent to large stadiums, big outdoor concerts, commercial events, etc.  TECHNICAL SPECIFICATIONSModel W-9BType Line array systemFrequency Response 52Hz-20KHz±3dBPower handling LF 2×600W(RMS)2×1200W(PEAK)MF 500W(RMS)1000W(PEAK)HF 200W(RMS)400W(PEAK)Sensitivity LF 104dB(1W@1M)MF 108dB(1W@1M)HF 111dB(1W@1M)Max S. P. L LF 135dB(PEAK/1M)MF 135dB(PEAK/1M)HF 134dB(PEAK/1M)LF section 2×12" (310mm)neodymium woofer75mm(3in) coilNominal impedance 8 ohmMF section 2×8" (210mm)neodymium MF65mm(2.5in)coilNominal impedance 8 ohmHF section 2×3"neodymium compression driverwith 75mm titanium diaphragmNominal impedance 16 ohmOutput section 3-channelDispersion pattern 110°H×7.5°VFinish Water-proof, wear-resistant textured black paintArray design Arrays of less than 3×W-9 willprovide poor dispersion control andare neither recommended nor supportedSpeaker cables LF 1(+)1(-) 2(+)2(-) MF 3(+)3(-) HF 4(+)4(-)Rigging system Please refer to the W-9 usermanual before any operationInput connectors 2×Neutrik NL8Recommend crossover LF 60Hz-250HzMF 250Hz-1.8kHzHF 1.8kHz-20KHzDimensions 932×360×530mm(W×H×D)Package dimensions 1000×430×600mm/0.26cbmEnclosure Birch PlywoodNet weight 55kgGross weight 59kgDetailed Photos  Company ProfileCertificationsExhibitionProduction FlowPackaging & ShippingFAQQ1. Can we have our logo or company information on your profucts or packages?A1: Sure. We accept OEM/ODM orders. Your logo can be shown on the products by printing, embossing etc. Just let us know your requirements. Q2. Are you a pro-audio manufacturer or trade company?A2: We are a 100% manufaturer located in Guangzhou, Sountheast China. We specialize in R&D, manufaturing, sales, system integration and technical support in live sound industry. Q3. What is thee warranty period of your products?A3: All our CVR products have one year free warranty. And if goods are damaged on arrival, free replacement will be arranged. We also provide a very competitive policy for policy for spare parts, which makes sure your systems will run smoothly. Q4. How about the lead time?A4: About 3 days for products in stock; About 15 days for big quantity or special models, please contact our sales for more details. Q5. What is the MOQ?How can i pay?A5: Our MOQ is 2 pieces; We accept cash, T/T, Weatern Union and Alibaba trede assurance is most welcome.
