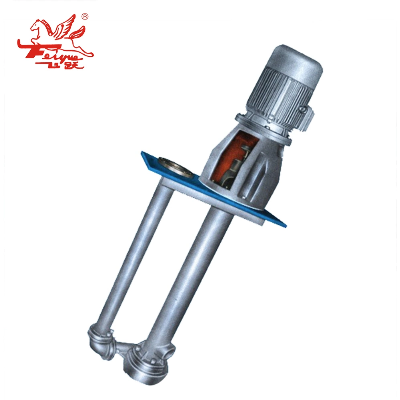

Lsb Submersible Vertical Sump Pump for Hydrochloric Acid Alkali Industry

Lsb Submersible Vertical Sump Pump For Hydrochloric Acid Alkali Industry Product DescriptionConform to design standard of ISO2858/GB5656Flow range: 20~2500m2/hLift range: ~50mDesign pressure: 2.5MPa at mostApplication temperature: -80ºC~350ºCApplication field: Transport all kinds of strong corrosive medium such as high-temperature concentrated sulfuric.Mainly used in industries of sulphuric acid, pyrites acid waste acid recovery, flue gas desulfurization acid recovery, sulphur recovery and other high temperature medium in chemical process. Product overviewIn order to meet the requirements of sulfuric acid manufacturing technology, our company developed LSB series high-temperature concentrated sulfuric acid submerged pump with Institute of Metal Research,Chinese Academy of Sciences, Shanghai Jiao Tong University and Jiangsu University of Technology. It has been successfully applied in several sulfuric acid factory.LSB series concentrated sulfuric acid pump has following characteristics:1. Research and select good pump hydraulic models, which makes operation stable and energy-saving.2.Research and select the most advanced anti-corrosive materials in our country. Transflux parts apply special anti-corrosive alloy. Other parts apply special anti-corrosive cast-iron. Its makes pump service life longer.3. Absorb sulfuric acid pump design strengths from both home and abroad, and extend suction pipe length. Improve the rigidity of pump group and make its operation stable and reliable.4. This series of pump has high standardization and generalization, good interchangeability and convenient maintenance.Parameter rangeFlow Q:20-2500m2/hLift H:-50mDesign working pressure:2.5MPaDesign working temperature:-80~+350ºCProduct instructionApplication rangeChoose according to medium condition: anti-corrosive cast-iron alloy,Lewmet55,Lewmet75,SS920,20# alloy,20cb3,2520,904L etc.Product ParametersPerformance parameters of the tableCompany ProfileFAQ
