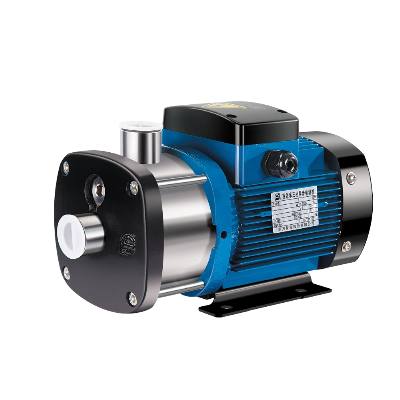

Cnp Stainless Steel Horizontal Booster Pump Pressure Pump

SummaryCHM is non-self-priming light horizontal multistage centrifugal pump.It has compact structure with extended shaft motor and the liguid is input in axis directionanooutput in radius direction.The flow passage adopts theprocess of stainless steel plate stamping andwelding which features the pump of energyefficiencylow noise environmental protection, beautiful appearancelightweight,convenient installation andmaintenance,andhigh reliability.MotorTEFC,2-pole motor; Protection class:lp55; Insulation class:F;Standard voltage:50Hz1x220v3x220V/380V3x380VMax.power ofsingle-phase motoris2.2KWOperating conditionThis pump is applied for thincleannon-flammable,non explosive,solid freefiber free,physicallyand chemically water-like liquid. Liquid temperature:-15ºCto 70Cfor thenormaltemperaturetype -15ºC to 105C for the hot water typeAmbient temp.:up to 40ºCMax.working pressure:10 barThe maximum inlet pressure are limited by the maximumworking pressure.Description    CHMRated flow [m³/h]    135101520Ratedflow[L/s]0.280.831.392.784.175.56Flow range [m³/h]    0.5-2.41.2-4.42.5-8.55-148-2410-29Flow range[I/s]    0.14-0.670.33-1.220.69-2.361.39-3.892.22-6.672.78-8.06Max.pressure [bar]56.65.79.67.67.9Power [kW]    0.37-0.550.37-1.10.37-1.10.75-41.1-4.81.1-7.5Temp. [ºC]-15-+105
