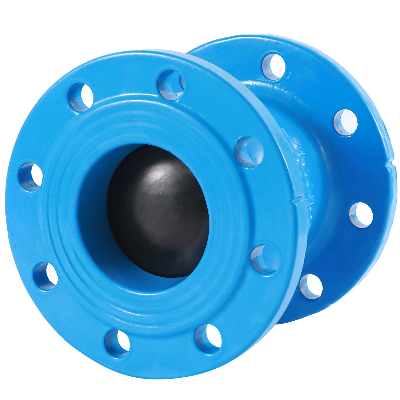

Flanged Silent Check Valve for Water Pump System

Our Silent Check Valve is desgin with BS EN 1074-3 or BS EN 12334 or BS 5163 Standard. The silent check valve have advantage as below:- Reasonable and Streamlined Design- Small nosize for direct flow or backflow- 0.2 Bar Head Loss - Integral body and flow guide- Disc with full rubber coated 1- Body/Bonnet: GGG40/50                 2- Seat/Stem/Spring: SS304 3- Bushes: C61900                                    4- DISC: GGG40/50 + EPDM Coating 5- Epoxy Resin coating internal & external, thickness above 300 micron 6- Work pressure: PN10/16/25; Size range: 2" to 24"7- Connection acc. to EN1074, BS5163, ISO 7259Silent Check Valve size from DN50 - 600, Material D.I Or S.S .Walter-FSV Company also provide OEM or ODM for GATE VALVE, BUTTERFLY VALVE, CHECK VALVE, PRESSURE REDUCING VALVE, FLOAT CONTROL VALVE.
