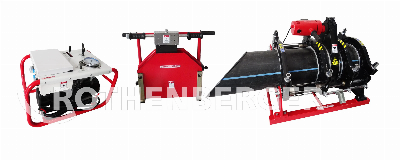

Plastic Pipe Butt Fusion Welding Machine (SHD315)

plastic pipe Butt Fusion Welding Machine (SHD315)USES and features:1. Suitable for butt welding of plastic pipes and fittings made of PE, PP and PVDF material.2. Consists of basic frame, hydraulic unit, planing tool, heating plate, basket & optional parts.3. Removable PTFE coated heating plate with high accurate temperature control system;4. Electrical planing tool.5.Simple structure, small and delicate, user friendly.6. Low starting pressure ensures reliable welding quality of small pipes. 7.Changeable welding position enables to weld various fittings more easily.8.High accurate and shockproof pressure meter.9. Separate two-channel timer records time in soaking and cooling phases.Optional parts1. Stub end device for short flange stub2. Data logger. Model SHD315 Pipe Size(mm) 90, 110, 125, 140, 160, 180, 200, 225 250, 280, 315 Heating Plate Max. Temp. 270 Temp. deviation in surface (170~250 degree) ± 7 Pressure adjustable Ranges 0~6.3MPa Working Voltage 220V, 50Hz Heating plate power 3.1KW Planing tool r Power 1.1 KW Hydraulic unit power 0.75 KW Total power 4.95 KW Weight 216Kg Packing Dimension    (mm) Frame 1120× 710× 720 Support 780× 630× 750 Hydraulic Unit 740× 490× 570 Packing .Certificate CE ISO
