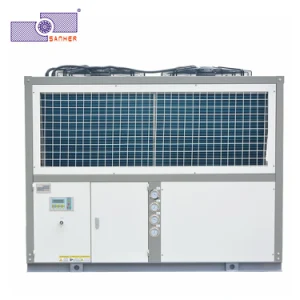

Ce Central HVAC Modular Air Cooled Industrial Scroll Water Chiller

Basic Info.TypeAir-CooledCooling MethodAir-cooledUnit StructureIntegralSelected Voltage380V/50HZCompressor Number2Noise LevelUltra QuietApplication FieldsPlasticApplication MachinePrecision Machine ToolCertificationISO, CE, CCCCondition New CondenserRipple Aluminum Finsaround Copper PipeEvaporatorShell and TubeRefrigerantR22 or R404ACertificateCe, ISONumber of Refrigeration Circuit2TrademarkSANHER or OEMTransport PackagePlastic Film+Wood BoxSpecification52.8KW(R22), 50.4KW(R407C), 34KW(R134a))OriginGuangzhouProduct DescriptionWe can customize different kinds of chillers and central air conditioners according to customer request, welcome to contact us for details, we will provide professional solutions for you. CE Central HVAC Modular Air Cooled Industrial Scroll Water Chiller        SHKR series scroll chillers adopt the high quality scroll compressors, electrical and refrigeration system components. With friendly interface, it is easy for user to operation. All SANHER chillers are factory tested under load conditions to ensure easy installation for users. The cooling range of this series from 8900 kcal to 145900 kcal (3HP-45HP), and the chilled water temperature ranges from 7 °C to 12 °C. The unit is equipped with multiple safety protection devices, and the components are complete and reliable, which can exert the maximum effect in actual operating conditions. SpecificationModel       SHKR-03AI05AI 08AI 10AI12.5AI15AIRefrigerantR22R407CR134aR22R407CR134aR22R407CR134aR22R407CR134aR22R407CR134aR22R407CR134aNominal cooling capacity×1000kcal/h7.16.64.610.5107.116.916.610.822.721.714.625.924.917.132.931.621.8KW8.37.75.312.211.68.319.719.312.526.425.21730.128.919.938.336.725.3Input powerKW2.992.972.144.384.383.086.887.084.989.429.326.7210.4210.427.6213.813.710Comp.Power×QTY (kw×unit)2.75×12.73×11.9×14×14×12.7×16.1×16.3×14.2×18.1×18×15.4×19.1×19.1×6.3×112.4×112.3×18.6×1Comp.current  (A)5.55.74.58.558.656.4513.2513.6511.4517.117.314.118.618.814.427.328.324.8Power Supply3Phase-380V-50HzProtection DeviceReverse phase protection,phase loss protection,overcurrent protection,high and low voltage protection,low temperature protection,water flow protectionNumber Of Refrigeration Circuit1Capacity Control (%)0,100Condenser Ripple Aluminum Finsaround Copper pipePower input of Fan(KW)0.240.380.781.321.321.4EvaporatorShell-and-Tube TypeWater Side max Pressure(MPa)1Dia.of pipe to Evaporator(inch)1″1-1/2″1-1/2″1-1/2″2″2″Chilled Water Flow (L/min)23.822.115.23533.323.856.555.335.875.773.148.786.382.855.9109.8105.272.5Evaporator Water Pressure drop(kPa)141423282830Running noise   Db(A)606266666860Total Weight(kg)150180300360410480Note:                  1. Nominal cooling capacity based on: Ambient temperature 35°C, Evaporator inlet and outlet water temperature 12°C/7°C, Fouling coefficient 0.088m2.°C/KW;2. Chilled water temperature range: 5ºC ~ 20ºC; R134a: 5ºC ~ 25ºC;3. Minimum ambient temperature: -5ºC;4. Specifications and dimensions will be subject to change without notice.Model       SHKR-20AI25AI 30AI 40AI45AIRefrigerantR22R407CR134aR22R407CR134aR22R407CR134aR22R407CR134aR22R407CR134aNominal cooling capacity×1000kcal/h45.443.329.251.849.734.268.16543.977.774.651.398.894.765.3KW52.850.43460.257.839.879.275.65190.386.759.7114.9110.175.9Input powerKW18.8418.6413.4420.8420.8415.2428.2627.9620.1631.2631.2622.8641.441.130Comp.Power×QTY (kw×unit)8.1×28×25.4×29.1×29.1×26.3×28.1×38×35.4×39.1×39.1×36.3×312.4×312.3×38.6×3Comp.current  (A)34.234.628.137.337.528.851.351.942.255.956.343.381.884.874.4Power Supply3Phase-380V-50HzProtection DeviceReverse phase protection,phase lose protection,overcurrent protection,high and low voltage protection,low temperature protection,water flow protectionNumber Of Refrigeration Circuit23Capacity Control (%)0,50,1000,33,66,100CondenserRipple Aluminum Finsaround Copper pipePower input of Fan(KW)2.642.643.963.964.2EvaporatorShell-and-Tube TypeWater Side max Pressure(MPa)1Dia.of pipe to Evaporator(inch)2″2″2-1/2″2-1/2″2-1/2″Chilled Water Flow (L/min)151.4144.597.5172.6165.7114.1227216.7146.2259248.5171.1329.4315.6217.6Evaporator Water Pressure drop(kPa)2828323232Running noise   Db(A)7070707272Total Weight(kg)68072090010801200Note:                1. Nominal cooling capacity based on: Ambient temperature 35ºC/24ºC, Evaporator inlet and outlet water temperature 12ºC/7ºC, Fouling coefficient 0.088m2.ºC/KW;2. Chilled water temperature range: 5ºC ~ 20ºC; R134a: 5ºC ~ 25ºC;3. Minimum ambient temperature: -5ºC;4. Specifications and dimensions will be subject to change without notice.Applications 1. The chiller is applied to the plastic processing machine forming mold, which can greatly improve the surface finish of the plastic products, reduce the surface marks and internal stress of the plastic products, so that the product does not shrink or deform, facilitate the demoulding of the plastic products, and accelerate the product setting. It can greatly improve the production efficiency of the plastic molding machin
