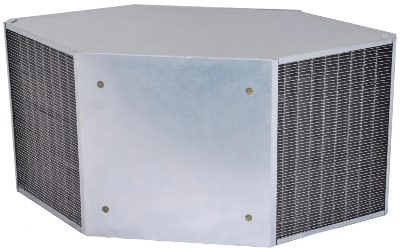

Holtop Air to Air Cross-Counter Flow Plate Heat Exchanger (HBS-LB)

MAIN FEATURES1. Sensible heat recovery2. Total separation of fresh & exhaust air streams3. Heat recovery efficiency up to 90%4.2-side press shaping5. Single folded edge6. Completely joint sealing.7. Made by flat aluminum foils of 0.12mm thickness8. Partial air flows crossly and partial air flows counter9. Suitable for room ventilation system and industrial ventilation system.WORKING PRINCIPLE of aluminum foil cross counter flow plate heat exchangerTwo neighbor aluminum foils form a channel for fresh or exhaust air stream. Heat is transferred when the partial air streams flow crossly and partial air streams flow counter through the channels, and fresh air and exhaust air is totally separated.APPLICATIONIdeal for both residential and commercial application.Suitable for airflow 300-60000m3/h.Holtop plate heat exchanger can be used in the Air Handling Unit (AHU), Heat Recovery Unit (HRU) as a main part of the heat recovery section, and the bypass can be built in when required.It can also be installed in the ducts of ventilation system as a main part of the heat recovery section. The installation is very flexible.PS: Selection Software and Custom-made Products are available. ModelA (mm)B (mm)C (mm) Length  perpiece(L)Optionalspacing(mm) HBS-LB539/316 539 316 203Custom-madeMax.650mm
