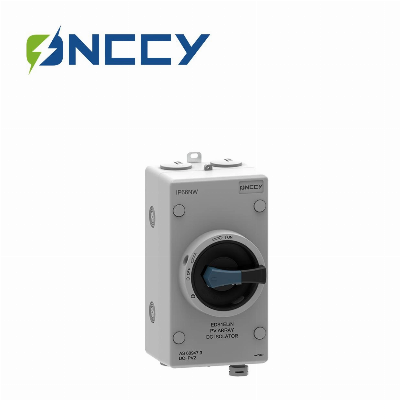

CE TUV Waterproof DC 1000V/1200V/1500V 32A Enclosure DC Isolator Product Description UV resistance and V0 flame retardant materialContact Silver Plating, silver layer thickness up to the industry's highest standardsArcing Time in 3 msNo Polarity Lockable at OFF positionIEC/EN60947.3 standard and AS 60947.3 Five years warrantyIP66 degree of protectionProduct Parameters Installed at any angle can achieve IP67 waterproof levelUV resistance and V0 flame retardant materialContact Silver Plating, silver layer thickness to the industry's highest standardsArcing Time in 3msBreather valve attached on the bottom of the isolatorNo PolarityLockable at OFF positionAS 60947.3:2018 and IEC 60947.1:2015 standard5 years warranty, product insurance, and recall insurance availableTechnical DataMain ParametersEDS1/N EDS1/SRated Insulation VoltageUiV1500Rated thermal currentIthA32Rated impulse withstand voltageUimpV8000Rated short-circuit making capacityIcwA1 kA,1 SMaximum cable section(incl.jumper)Solidmm24-16Flexiblemm24-10Flexible(+multicore cable end)mm24-10TorqueTightening torque terminal screws M4.Nm1.2-1.8Tightening torque shell mounting screws ST4.2(304 stainless steel)Nm1.5-2.0Tightening torque knob screws M3Nm0.5-0.7Switching on or off TorqueNm0.9-1.3The wiring Torque on BaseNm1.1-1.4General parametersKnob Positions 12 o'clock,OFF 3 o'clock,ON 9 o'clock,OFF 12 o'clock,ON Electrical LifeActual 3000 CyclesStandard 300 Cycles Mechanical LifeActual 10000 CyclesStandard 10000 CyclesNumber of DC poles 2 or 4Operation temperature°C-40 to +85Storage termperature°C-40 to +85Pollution degree 3Overvoltage category IIIIP rating of shafte and mounting nul IP66Data according to AS60947-3Main ContactsVoltageEDS1/N32Rated thermal current Ithe 32 ARated insulation voltage Ui 1500 VDistance of contacts(per pole) 8 mmRated operational current Ie(DC-PV2) 4 layers, only 2layers in series, with two load 1 2 300V32 A600V32 A800V16 A1000V9 A 4 layers, 4 layers in series, with one load 1 2 3 4 300V32 A600V32 A800V32 A1000V32 AFAQQ: Are you trading company or manufacturer ?A: We are manufacturer. We have 30,000 square meters of self-owned plant.Q: Do you have any certificates?A: Yes,we have UL, TUV, CB, SAA, CCC, CE and other certifications.Q: How do we make a quick response to customer , 5 inquiry ?A: Our professional team will reply you online or by email,Skype, whatsApp and so on.Q: Do you have any exporting experience?Which countries did you export to before?A: We have lots of exporting experience and customers in many countries,such as America, Japan,Australia,UAE,Canada,Vietnam,Turkey,Thailand,Russia,UK,etc.Q:Can you supply samples for checking ?A: Yes, we can supply samples, pls contact for detailed required.Q:How long is your delivery time?A: Generally it is within 3days for small qty. Or it is around 15-20 days to a general order.Q: What is the standard of package of your goods?A: Export standard package or special package according to customer requirement.Q:How about inspection?A: We have the whole inspection system from raw material to end products include transient test, delay test,mechanical life test and so on.Q:What is the service offered by company?A: We have the professional engineer team which can design and develop the mould to arrive different customer requirements. We also have the professional sales team to offer good service from pre-sale to after-sale.
