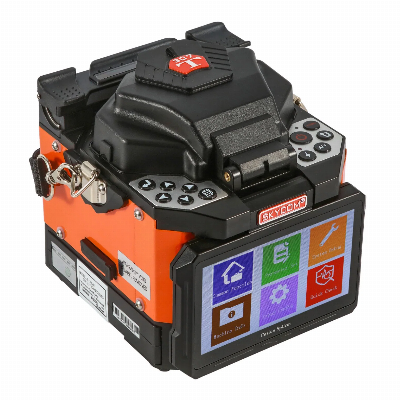

Fiber Optics Splicing Machine Skycom T-307h

SKYCOM Hi-Precision Digital Fusion SplicerT-307H  Description> Fusion splicer is used for joining two optical fibers end-to-end using heat, to fuse the two fibers together in such a way that light passing through the fibers is not scattered or reflected back by the splice, and so that the splice and the region surrounding it are almost as strong as the virgin fiber itself. > We has been dedicated to R & D, manufacturing fusion splicer from 2010, and successfully obtained 5 patents for the fusion slicer research. SKYCOM T- 307 are our latest developed product. It is more concise and smaller in size and has obtained 2 patents for its new technologies.Key Features:  1>Typical  splicing time: 9 seconds2>Typical Quick time: 18  seconds              3> More Portable designSpecifications ModelSkycom T-307HMonitor4.3 inches TFT high resolution colorful LCD displayFiber Image MagnificationX or Y Separately 520 times or Simultaneously 200 timesApplicable FibersG.651, G.652, G.653, G.655, G.657Average Splice LossG.652: 0.02dB  G.651 : 0.01dB G.655 : 0.04dBReturn Loss≥60dBTypical splicing time9 secondsFast mode time8 secondsTypical heating time25 seconds           Protection SleeveLength40mm, 45mm, 60mmSplicing Program50 preset and user programmable modesHeating Program10 heating modesOperating LanguageChinese, English, French, Portuguese, Spanish, Italian, IndonesianOperating Conditions-10~+50°C(operation temperature),0~95% RH(humidity), 0~5000m(altitude)Power SupplyAC inputAC adaptor: 100~240V input voltage, 50/60Hz;DC input12V, 5A output voltage(DC)BatteryInner lithium battery: 11.1V, 5.2 AH, Up to 180 times splice and heatEstimated Splice LossAvailableCleaving Angle DetectionAvailableAutomatic Self-CheckCameraAvailableForward MotorTension Test1.96~2.25NStorage of Splice Result6,000 groups of latest splice resultsSplicing ModelAuto & Manual & Full Auto & SteppingOptical Fiber Fixture3-in-1 cutting fixture; Multipurpose 1+N fixture (for SC/LC/FC connector)TerminalUSB for Memorizing and UpdatingDimensions120(W)*120(D)*130(H)mmWeight1.25kg+0.34kg (battery weight)=1.59kg;Standard Accessories No.ItemQuantity1Machine T-30712Fiber Cleaver13Fiber Stripper14AC Adaptor (Charger)15Battery16Spare Electrodes17Cooling Tray18Instruction CD19Quick Reference Guide110Rubber-insulated wire stripping pliers111Rubber-insulated wire 3-in-1 cutting fixture112Carrying Case with Carrying Strap1*Custom-made Professional anti-shock tool kit (case) with sponge inside *T-307= T-307 +SOC fixture(for SC/LC/FC connector)
