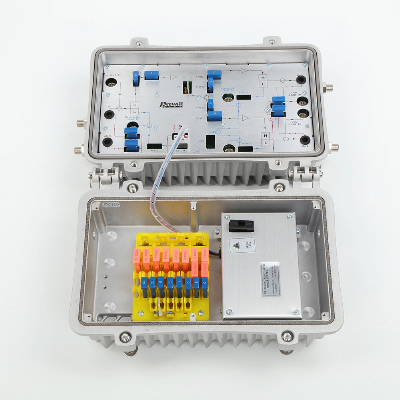

1550nm CATV Waterproof Outdoor EDFA Optical Amplifier (WE-1550-YZ-YW)

1550nm CATV Waterproof Outdoor EDFA Optical Amplifier (WE-1550-YZ-YW)1. WE1550nm Erbium-Doped Fiber Amplifier is the important transmission equipment in the WE1550nm fiber optic communication.2. It is used for long-distance optical transmission of TV image signal, digital TV signal telephone sound signal and data (or compressed data) signal.3. With high steady imported Erbium-Doped Fiber, international famous low-noise pump laser and automatic control system inside, ensuring the excellent qualification of this equipment.Item Unit Technique  ParameterRemark Operating  Wideband nm1535  -  1565 Input  Optic  PowerdBm-3  -  +10Input  Optical  Power  0  -  +5dBmOutput  Optic  PowerdBm13  -  26 Output  Power  stabilitydBm± 0.5 Noise  FiguredB≤   5.0Output  Optical  Power  0dBmReturn  Loss Input  End dB≥   45  Output  EnddB≥   45 Power  of  Pump  leakInput  EnddBm≤   -30  Output  EnddBm≤   -30 C/NdB≥   52 C/CTBdB≥   63 C/CSOdB≥   63 Connector  Type FC/APC, SC/APC Supply  VoltageVAC160V  -  250V (50  Hz)it  can  be  set  with  Dual-power  hot-backup  supplyOperating  Temperature -5  -  +55 Max  Relative  Humidity%Max95%No  Condensation Storage  Temperature -30  -  +70 Max  Relative  Humidity  for  Storage%Max95%No  Condensation Dimensionmm483(W)*34(L)*44(H)  Company IntroductionProcessExhibition
