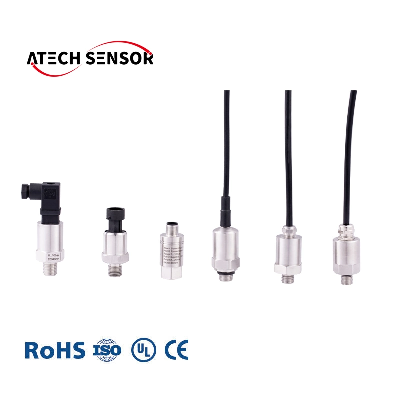

PT208 Ceramic Economical Pressure Transmitter Pressure Sensor Transducer

Product DescriptionProduct overviewPT208 series of pressure transmitter is a standard and most popular transmitter applied water pump, auto engines, air conditioning equipments ect. The pressure transmitter features of high stability, small size, ligh weight ,compact structure and low cost for mass production.The products are made of stainless steel. the pressure sensing elements and chips are selected from well-known Germany brands. Special circuits are adopted to zero and full range conveniently. The product are approved with CE, intrinsically safe, Customized structures and output formats can be designed according to special application requirementsProduct Parameterspressure mediumgas liquid compatible stainless steelpressure ranges0~5...400baroverload pressure150%FSBroken Pressure250%FSoutput signal4~20mA, 0.5~4.5V,0-10V,0-2V,4.5-5.5vaccuracy1%FS (standard) 2%FS 0.5%FSload resistanceRL = (U-10)/0.02(Ω) (4~20mA current output), >100KΩ (voltage output)long term stability0.5%FS/yearsupply voltage10~30Vcompensated temperature range-10~80°coperating temperature range-40~+120°cstorage temperature range-40~+140°cinsulation resistance>100MΩ@ 50VDCresponse time10msEMCEMI:EN50081-1/-2, EMS:EN50082-2process connectionG1/4 or otherselectrical connectionDIN 43650 or othersmaterial of wetted part1Cr18Ni9Timaterial of pressure membraneceramicmaterial of housing1Cr18Ni9Tiweight88gProduct DisplayWhy Choose UsYou will benefit from Our pressure transmitter ?FeatureAdvantageBenefitIt offers process connection ,electronical connection range accuracy optionsall the standard industry output signals, the most common international process connections and a wide number of electrical connectionsit can be suited to the widest range of applications. lightning  surge reverse protectionshort-circuit conditions to protect prevent reverse connection; Instant voltage overload protectionrunning reliable and longlasting in harsh conditionThe vent with a filterbreath atmospher and protect moisture enter transducerwithout maintenance, even in the most humid environments.USA TE Chip,Digital PCB boardHigh accuracy 0.25%,Small temperature drift,automatically compensates for changes in barometric pressureStability,keep sensor running longer by reducing downtime and maintenance costsLowe-Power output signalsLow-power output signals for battery-operated or solar measuring systems available ,lowest power supply is 3.3Venergy-saving and environmental protection316L diaphragmAnti-corrision ,wear resistance , shock resistancemake it suitable for immersion for a long time in most industrial liquidsSuction water  filter design8 pore design Anti-blocking  Prevent plugging rate increases more than 80%Simple maintenance ,easy to cleaning and installationTrust Me, ATECH SENSOR Will Be Your Best Choice,Contact Us Now!  Get more cooperation schemes,please contact me Company ProfilePackaging & Shipping FAQ1.Q: How long is the delivery?-- Mostly within 10days2.Q:Can I get a sample?-- Sure, contact our sales please 3.Q:What is your MOQ?-- 1pcs 4.Q: How about warranty time?-- 12-18months 5.Q: How can I visit your factory?-- Fly to Xi'an air port, it's our pleasure to pick you up. 6.Q:How do you control your quality ?-- We have EPR system .we control from parts, process, testing, packing ,retesting. 7.Q: Do you have test report for each product?-- Yes,we have test report for each product. 8.Q: Can you customize product for us according to our required specifications?-- Yes,we are OEM manufacturer,we could customize products according to your required specifications. Every Sensor will be tested two times before reach you, after that sport test for the third time. Make sure about the quantity.Welcome to order our products
