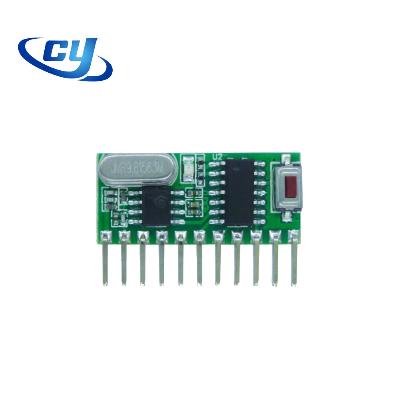

Cyrm03-V3.0 Electronic Component Integrated Circuit RF Module

CYRM03-V3.0 433.92/315 Decoding 1527 Learning Decode Receiver Module  Product Description 1. DESCRIPTION:CYRM03-V3.0 is an ISM frequency band high quality super heterodyne decoding wireless data transfer receiving module. This module adapts UHF wireless communication technology and low noise large scale integrated circuit, so it has a perfect antistatic protection, high reliability and very competitive in terms of pricing and performance. It can be used in a large number of applications such as remote control garage doors, extendable doors, brake, industrial control, communications, security, home automation, GSM/GPS on-board system and etc fields. The receiving system is an ideal choice for high demand system with a complex environment. 2. FEATURES: Frequency: 315MHz/433.92MHz/ (custom frequency is available);High sensitivity -110dBm;Supply voltage: VCC= 2.6V to 5.5 V;4 Channel output, self setting for Latches and Temporary Storage Mode;EV1527 Learning Code decoding receiving module (PT2262 Fixed Code and HCS301 Rolling Code are available). For EV1527, CYRM03-V3.0 can support up to 8 encoders (RC), when the encoder learning overflow (i.e. more than 8 encoders), decoder will start automatically covering and scrapping the encoder that has been studied at the earliest. Low power consumption: 5.0V/5.0mA@433M,5.0V/4.0mA@315M, continuously data rate to 2.4kbps(Manchester encoding)Good selectivity and stray radiation inhibition ability.Temperature range -20-70ºC, It can work normal even under harsh environment.  3. APPLICATION: Remote gate controls, Brake Remote keyless entry (RKE) Wireless control Curtain device Wireless security systems Wireless Industrial Control Wireless parking lot barrierPINPIN NAMEPIN DEFINITION1ANTAntenna In2GNDGround3VTWireless signal indicating port4DATAWireless data testing port5KEYConnect external learning button6D1D1 Channel output, self setting for latches and temporary storage mode7D2D2 Channel output, self setting for latches and temporary storage mode8D3D3 Channel output, self setting for latches and temporary storage mode9D4D4 Channel output, self setting for latches and temporary storage mode10VDDPositive Power Supply11GNDGround Detailed PhotosCertifications Packaging & Shipping Company Profile
