Cy08-V1.1 Wholesale Electronic Components RF Receiver Module

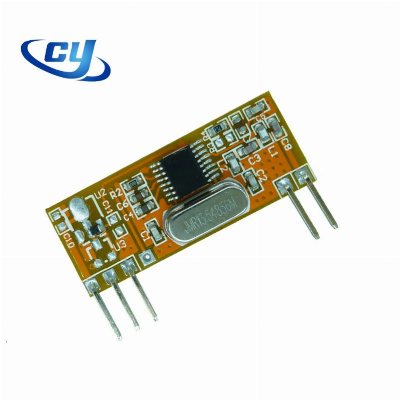

CY08-V1.1 433.92mhz Wireless RF receiver moduleProduct DescriptionDescription:The CY08-V1.1 is a ASK/OOK compatible super heterodyne wireless receiving module with high performance for ISM frequency band. With the adoption of European brand RF wireless data transferring/receiver chipsets. The model has a high receiving sensitivity and strong ability of resisting. From wireless signal input to data output can be done without any electrical circuit. User only use extra simple data decode circuit can achieve wireless products development.   The CY08-V1.1 is a comersion level version Features:Frequency: 315MHz/433.92MHz (custom frequency is available); High sensitivity -110dBm/433.92 1kbps BER10E-2; Supply voltage: VCC= 3.6 to 5.5 V; IF band: 230KHz; Low power consumption: 4.8mA/315M, 6mA/433.92M. Excellent selectivity and noise rejection; ApplicationRemote gate controls Remote keyless entry Car alarm systems Wireless security systems Automation systemsPin NamePin DefinitionANTAntenna InGNDConnect to negative power supplyENOptional output: 1.Empty(Default Setting ); 2.Battery saving mode(shut down): (Working mode in low level input)(Sleeping mode in high level input)GNDConnect to negative power supplyDATAData OutputVDDPositive Supply Power  Detailed PhotosPackaging & Shipping CertificationsCompany Profile
