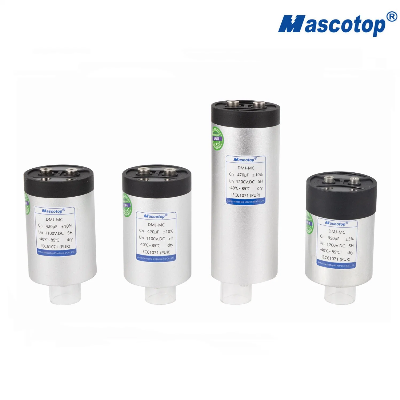

DC-LINK High Temperature Super Capacitor with High QualityProduct DescriptionFeatures and useThe capacitor has the advantages of low self-inductance, low impedance, long life, low capacity loss, good self-healing, high-current impact resistance, and fast charging and discharging speed. It is suitable for photovoltaic inverters, wind power converters, frequency converters, etc., and helps DC circuit filtering.Technical parameterAmbient TempRated Voltage(AVC)Range of Capacitance(μf)Withstand voltage between two polesWithstand voltage between pole shellsInsulation resistance-40-70ºC700-1800VDC100-18001.5Un VDC 10s4000VAC 60sRs × C≥10000S(at20°C 10 VDC 60s)Outline sizeCn(uf)Rs(mΩ) Imax(A)I(KA)Wn(Ws)Ls(nH)D×L(mm)Drawingm(Kg) Un 700VDC Us1050v Ur200V Ut-t 1050 VDC Ut-c 3000VAC3702.1402.08650Φ76*130A,B,C,D0.74401.8402.310350Φ76*145A,B,C,D0.84701.7552.511040Φ86*130A,B,C,D0.95601.4403.013260Φ76*181A,B,C,D1.05901.3553.113740Φ86*145A,B,C,D1.07301.1553.917150Φ86*181A,B,C,D1.210301.0555.125270Φ86*225A,B,C,D1.5 Un 900VDC Us1350v Ur200V Ut-t 1350 VDC Ut-c 3000VAC3502.1402.014850Φ76*130A,B,C,D0.74101.2402.317850Φ76*135A,B,C,D0.84701.0552.519140Φ86*135A,B,C,D0.95401.4403.022960Φ76*181A,B,C,D1.05601.3553.123840Φ86*145A,B,C,D1.07001.1553.929750Φ86*181A,B,C,D1.210201.0605.141370Φ86*225A,B,C,D1.5 Un 1100VDC Us1650v Ur250V Ut-t 1650 VDC Ut-c 3000VAC2403.3501.517050Φ76*130A,B,C,D0.73002.6501.921660Φ76*145A,B,C,D0.83202.4652.023240Φ86*130A,B,C,D0.93802.2502.327060Φ76*181A,B,C,D1.04002.0654.224250Φ86*156A,B,C,D1.25001.5706.030360Φ86*186A,B,C,D1.36001.6604.236370Φ86*225A,B,C,D1.512000.91001.872680Φ120*230A,B,C,D2.5 Detailed PhotosProduction Process You May LikeView more porducts,click products keywords...CH85 HIGH VOLTAGE CAPACITOR APPLIED IN MICROWAVE OVENSCBB61 MOTOR RUNING CAPACITOR APPLIED IN FAN MOTORCBB65 MOTOR RUNNING CAPACITOR APPLIED IN AIR CONDITIONERCD60 MOTOR STARTING CAPACITOR WITH CQC VED TUV CERTIFICATIONCBB60 MOTOR RUNNING CAPACITOR APPLIED IN PUMPSELF-HEALING LOW VOLTAGE SHUNT CAPACITOR APPLIED TO POWEROTHER SPECIAL CAPACITORCompany ProfileWhy Choose UsFAQ
