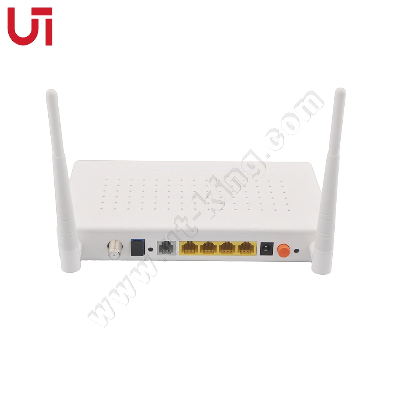

New Product FTTH Xpon ONU/Hgu Ut-XP64311ge+3fe+1tel+WiFi+CATV

Product Overview       UT-King XPON ONU/HGU(XP6431) devices are designed for fulfilling FTTH and triple play service demand of fixed network operators or cable operators. These boxes are based on the mature Gigabit GPON and EPON technology, which have high ratio of performance to price, and the technology of 802.11n WiFi (2T2R), Layer 2/3 and high quality as well. They are highly reliable and easy to maintain, with guaranteed QoS for different service. And they are fully compliant with technical regulations such as ITU-TG.984.x and IEEE802.3x. o  1 PON Porto  1 GE + 3 FE Port o  1 POTSo  WIFI (2.4G , 2T2R)o  CATV (RF Port)  l  Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.l  Integrated OMCI or OAM remote configuration and maintenance function.l  Support rich QinQ VLAN functions and IGMP Snooping multicast features.l  Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.l  Support 802.11b/g/n WiFi(2T2R) function.l  Support NAT, Firewall function.l  Support IPv4 and IPv6 dual stack. Product Specification Item DescriptionChipsetsRealtek RTL9603C+RTL8192Optical interface1 XPON interface, SC single-mode/single-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25GbpsOpticalWavelengthTx 1310nm, Rx 1490nmOptical interfaceSC/UPC or SC/APCRX sensitivity< -27dBm @ 1490nmWirelessCompliant with IEEE802.11b/g/n,Operating frequency: 2.400-2.4835GHzsupport MIMO, rate up to 300Mbps,2T2R,two external antenna 5dBi,Support: Multiple SSIDChannel: AutoModulation type: DSSS, CCK and OFDMEncoding scheme: BPSK, QPSK, 16QAM and 64QAMWLAN throughput100Mbps @ 40users, 1518bytes, no-encryption107Mbps @ 40users, 512bytes, encryptionLAN interface1*10/100/1000Mbps3*10/100MbpsAuto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectorsPOTS interface1 FXS, RJ11 connectorsCATV interfaceRF, WDM ,optical power : +2~-18dBm   Optical reflection loss: ≥45dBOptical receiving wavelength: 1550±10nmRF frequency range: 47~1000MHz,  RF output impedance: 75ΩRF output level: 78dBuVAGC range: 0~-15dBmMER: ≥32dB@-15dBmDC power supplyDC 12V/1A, external AC-DC power adaptorButtonRST, Power, WiFi, WPS, PairPower consumption≤ 10WOperating conditionOperating temp: 0 ~ +55ºCOperating humidity: 10~90% (non-condensed)Storing conditionStoring temp: -30 ~ +60ºCStoring humidity:10~90%(non-condensed)Dimension180mm×110mm×40mm(L×W×H)Net Weight0.24KgProduct FeaturesItem  DescriptionQuality of Service Service Flow Classification based on VLANSchedule rules Support SP/WRRUpstream Priority Label Support 802.1D User PriorityRate Limit and Traffic shapingCongestion Control Support Tail-DropAdvanced FeaturesUpstream and Downstream FECDynamic Bandwidth Allocation(DBA) support NSR/SRUp to 7 T-CONTs and 4095 GEM PortsOptical power detection, Dying GaspTerminal Silent mechanism802.3az EEE Energy ConservationVLAN802.1Q tag VLANVLAN transparent mode/VLAN translation mode/VLAN trunk modeAuthentication based on SN and PasswordVLAN Auto DetectSecurityAES EncryptionPacket Filter based on VLANVoiceCall protocol: SIP (IMS compatible), seamless compatible with all popular call agent.Integrate heartbeat function and support active/standby call agent.Voice       coding:    ITU-T       G.711/G.723.1(5.3K/6.3Kbit/s)/G.729, auto-negotiate with call agent.Echo cancellation exceeding ITU-T G.165/G.168-2002, up to 128ms tail length.Support high/low speed fax/Modem, bypass fax, and T38 fax.Support RFC2833 and redundant RFC2833, difference rings, MD5 authentication, call forward, call waiting, hot-line call, alarm clock, and all kinds of value-added voice service.Multi-party conferencing.Line testing according to GR-909.IP address assignment: dynamic PPPoE/DHCP Client and static IP.Support WEB, CLI, TR069.Integrated OAM, XML, DHCP option 66 & 67 for auto configuration and firmware upgrade.Call loss is less than 0.01%.WIFIIntegrated 802.11b/g/n, 300Mbps, 2T2R. Support 128 connections.Support WEP and WPA/WPA2 security protocols.ManagementManaged by Web, OMCI and Telnet,Specified the management IP,Reset to Factory default by Reset button or Web UI,Real-time statistics, Optical DiagnosticIGMPIGMP v2/v3IGMP Snooping/Proxy
