USB EMV PC/Sc Compliant USB ISO7816 Contact Card Reader (ACR39U-U1)

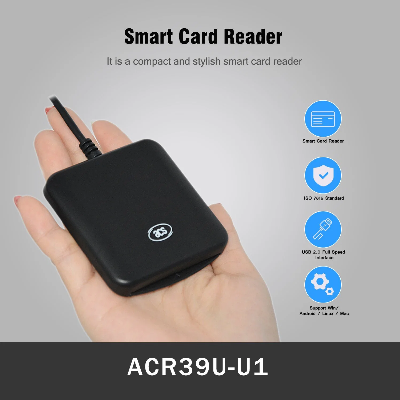

USB EMV PC/Sc Compliant USB ISO7816 Contact Card Reader ACR39U-U1GeneralThe ACR39U-U1 hails new and modern technology in the world of smart card readers. It is a compact and stylish smart card reader that brings together sophisticated technology with modern design to meet rigorous requirements in various smart card-based applications.FeaturesUSB 2.0 Full Speed InterfaceUSB Type APlug and Play - CCID support brings utmost mobilitySmart Card Reader:         Supports ISO 7816 Class A, B, and C (5 V, 3 V, 1.8 V) cards         Supports CAC         Supports SIPRNET Card         Supports J-LIS Card         Supports microprocessor cards with T=0 or T=1 protocol         Supports memory cards         Supports PPS (Protocol and Parameters Selection)         Features Short-Circuit Protection Detailed Photos Product Parameters Dimensions72.2 mm (L) * 69.0 mm (W) * 14.5 mm (H)Weight60gColorBlack (Matte)ProtocolUSB CCIDConnector TypeStandard Type APower SourceFrom USB portSpeedUSB Full Speed (12 Mbps)Supply Voltage5 VCable Length1.5 m (Fixed)Number of Slot 1 Full-sized Card Slot StandardISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V)ProtocolT=0; T=1; Memory Card SupportSupply CurrentMax. 50mASmart Card Read/Write Speed9.6 Kbps - 600 KbpsShort Circuit Protection(+5) V/GND on all pins Clock Frequency4.8 MHz Card Connector TypeContact Card Insertion CyclesMin.100,000 LEDGreen PC-linked ModePC/SC CT-API (through wrapper on top of PC/SC)Temperature0 °C - 60 °CHumidity Max. 90% (non-condensing) MTBF500,000 hrs Certifications/Compliance EN 60950/IEC 60950, ISO 7816, USB Full Speed, EMV™ Level 1 (Contact), PC/SC, CCID, CE, FCC, WEEE, RoHS 2, REACH TAA (USA), J-LIS (Japan), VCCI (Japan), PBOC (China), Microsoft® WHQLDevice Driver Operating System Support Windows® XP, Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10 Windows® Server 2003, Windows® Server 2008, Windows® Server 2008 R2, Windows® Server 2012, Windows® Server 2012 R2, Windows® Server 2016 Company ProfileAfter Sales ServiceFAQ1. Are you manufacturer?Yes, we are manufacturers. We have been in PC/POS/Mobile Payment product & Solution for Eight years. We can provide OEM / ODM customized service according to our customers' various application and demands.2. Would you provide SDK for me?Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.3. What warranty for the products?According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.4. What is the minimum order?We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department. 5. Can we get the free sample?Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation. When they place the mass order, we can return the sample cost to the customers.6. Do you accept Paypal?Yes, we accept paypal. Besides, we accept Western Union, T/T, L/C Secure payment (Escrow Service from Alibaba) and so on.7. What's the delivery time?Generally, sample can be shipped in 2-3 working days after payment. For quantity, theleading time will be 1-4 weeks depend on exact quantity. 8.Which way to deliver the goods?By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing.By Sea: Inform us the Sea Port to check which ship line.By Air: Inform us the Airport to check which flight.Or pick up by the customers. 9. What the after sale service?a. Our all products will provide 12 months warranty;b. Enough stock spare parts for guarantee;c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;d. As for the returned failure products, we will fix it and return to the customers in one week after we received it;
