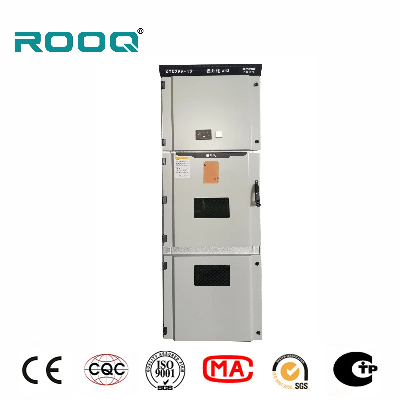

Metal Steel Electrical Distribution Box Control Cabinet Switchgear Electrical Distribution Cabinet

Basic Info.Mechanical Life20000 TimesCertificateCE,Type Test ReportBreaker TypeFixed/DrawableTransport PackageWooden CaseSpecificationIEC, GB, CETrademarkROOQ/Neutral/OEMOriginChinaHS Code8537209000Product Description MV SwitchgearProduct DescriptionKYN28 series alternating-current meta-clad and metal-enclosed with drawable switchgear is a complete of power distribution unit of three phase single busbar system of 12 KV,24KV.Switchgear is mainly applicable to power plants, power transmitting of middle and small size generators, distribution of industrial and mine enterprises, electricity receiving and transmitting of secondary substations, as well as starting of motors etc, realizes control protection and monitoring.It prevents on-load pushing or pulling breaker handcart, prevents making or breaking breaker by mistake, prevents closing breaker when the earthing switch is on closing position, prevents entering into live compartment by mistake, and prevents closing earthing switch under live condition. Applicable Environment:1 - Ambient air temperature: -15°C - +40°C2 - Altitude: ≤1000m3 - Relative humidity: daily≤95%, monthly ≤90%4 - Seismic intensity: ≤Ms85 - Installation site should be free of fire, explosive danger, serious pollution, chemical corrosion or severe vibration.Fields of application1 - Transformers and distribution substations2 - Generator control and protection3 - Capacitor bank control and protection, etcStandard:GB 3906, GB/T 11022 and IEC 60298. Construction detailsI-OutsideFour lifting hooksII-Medium voltage compartmentBolted-on terminal compartment with removable front sill Hinged, lift-off cabinet doors Interlocked hex-head or penta-head bolt padlock handle operates a cam assembly that is part of the three point door latching echanismHex-head or penta-head bolts must be removed from the flange formed on the steel high/low barrier before the HV door can be opened-not shown Removable neutral ground strapTank ground padsSteel high/low voltage compartment barrierNameplateFill plug and self-actuatingpressure relief deviceExternally operated no loadTap changerDrain valve and sampling deviceIII-Low voltage compartmentMain circuit breakerCurrent transformer(CT)MeterOutgoing feeder                                                                                                                                                                                                                                                                                                                                     Founded in 2008, registered capital of 108 million CNY, ROOQ electric group.;ltd is a high-tech enterprise specializing in the design, manufacture, sales and service of products such as power transformers, complete sets of electrical appliances, high and low voltage components, and smart city control systems.    Since its establishment, ROOQ has always adhered to product quality first, as the guide of "customer demands". It has successively served for T2 Wenzhou Airport,  Zhejiang National Defense Force, Hangzhou-Wenzhou Railway, Cangnan gymnasium, Country Garden Community, First People's Hospital of Songxi, Tema Road Lighting of Ghana, Presidential Palace of Burundi, Ministry of Energy of Rwanda, National Hospital of Mozambique, Refinery of CNPC in Thailand, State Television of Uzbekistan, Gold mine of Kyrgyzstan, National Data Center of Kazakhstan etc. With years of innovation and professional manufacturing experience, we have more than 20 independent intellectual property rights, and strong advantages in special product customization and EPC power engineering general contracting now. Stable quality assurance and timely delivery capabilities have won widespread trust from users around the world.
