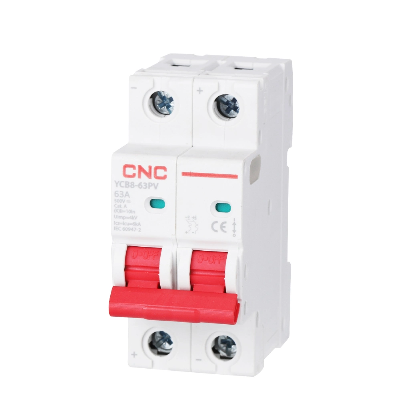

Ycb8-63PV Photovoltaic 2p 500V DC Thermomagnetic PV MCB with RoHS Certificate

YCB8-63PV Photovoltaic 63A DC Thermomagnetic PV MCBProduct DescriptionGeneral The rated operating voltage of YCB8-63PV series DC miniature circuit breakers canreach DC1000V, and the rated operating current can reach 63A, which are used forisolation, overload and short circuit protection.It is widely used in photovoltaic,industrial, civil, communication and other systems, and can also be used in DCsystems to ensure the reliable operation of DC systems.Standards: IEC/EN 60947-2, EU ROHS environmental protection requirements. Features Modular design, small size; Standard Din rail installation, convenient installation; Overload, short circuit, isolation protection function, comprehensive protection; Current up to 63A, 14 options; The breaking capacity reaches 6KA, with strong protection capacity; Complete accessories and strong expansibility; Multiple wiring methods to meet various wiring needs of customers; The electrical life reaches 10000 times, which is suitable for the 25-year life cycle of photovoltaic. StandardsIEC/EN  60947-2Number  of  poles1P2P3P4PRated current of shell frame grade63Electrical performance Rated working voltage Ue(V DC)2505007501000Rated current In(A)1,2,3,4,6,10,16,20,25,32,40,50,63Rated insulation voltage Ui(V DC)1200Rated  impulse voltage Uimp(KV)4Ultimate breaking capacity lcu(KA)(T=4ms)Pv:6    PVn:3Operation breaking capacity Ics(KA)Ics=100% |cuCurve  typeType B, Type C, Type KTripping typeThermomagneticService life(time)Mechanical20000ElectricalPV:1500      PVn:300PolarityHeteropolarityInline  methodsCan be up and down into the lineElectrical accessories Auxiliary contact Alarm  contact Shunt  release Applicable environmental conditions and installationWorking   temperature(ºC)-35~+70Storage  temperature(ºC)-40~+85Moisture resistanceCategory  2Altitude(m)Use with derating above 2000mPollu tion degreeLevel 3Protection  degreeIP20Installation environmentPlaces without significant vibration and impactInstallation categoryCategoryIII,CategoryIIInstallation methodDIN35 standard railWiring capacity2.5-25mm2Terminal  torque3.5N-mStandards  Product Catalog  Company Profile Our Advantages Our Clients/PartnersPackaging & Shipping
