Container Spray Booth Inflatable Spray Booth Car Portable Paint Booth

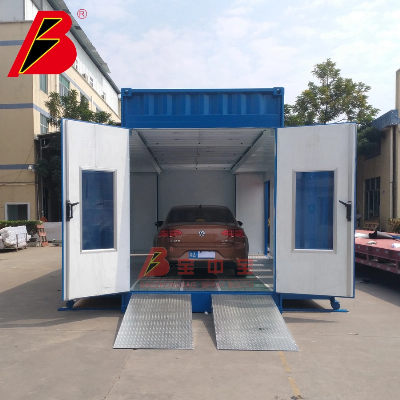

Model:  BZB-AXThis car spray booth made of container style.It can move to other place easily after simple installation.We can accept different kind of customied Spray Booth for  car or any other industry workpiece. Container Spray Booth Configuration Table                           Telescopic room inside size6954(L)*4200(W)*2458(H)mm                                     The outer diameter of the entire container10800(L)* 2438(W)*3400(H)mm(Close size)The outer diameter of the entire container10800(L)* 4354(W)*3400(H)mm(Expand Size)Main doorFront door with 2-leaf, 50mm thick EPS sandwich wall panels, size 2200×2400mm, (with large glass door), 6mm thick square tempered glass observation window, glass size 1150x550mm.                                                                                   Safety door2 pieces, one for each side wall, 50mm thick EPS sandwich wall panel, with pressure lock and observation windowEquipment access door2 units, 50mm thick EPS sandwich insulation wall panel, size  2200x2200mm with pressure locks and cooling holesOuter frameSquare pipe, I-beam, channel steel, bending parts, corrugated board and other welding machinesAir intake chamberFull-down draft, the top is a full filter cotton structure, and the part near the cabinet is made with a mesh structure trawlBasementTwo rows of standard floor grilles (galvanized), three rows of checkered plates (painted)The bottom is sealed, and the platform bracket is welded to form2000×900(L×W)3. Two pieces slope (with carrying ring), 2000×900 (L×W) paintingThe ground sealing plate of the back room is a panel checkered plate with heat preservationSupply and exhaustsystem1.The cabinet board is filled with rock wool for heat preservation, white, replacement the filter cotton and the normal inspection surface is movable board (the top frame has a movable board on one side)2. Air supply: turbo fan DDF-7.5KW, direct drive ABB motor, 415V/50HZ/3PH3. Exhaust air: TAE-450-7.5KW, belt drive ABB motor, 415V/50HZ/3PH4,Generator group position: rear side Inlet and exhaust ductEquipped with transfer ducts, 2 additional sections of air inlet duct + rain cap; 4 sections of exhaust duct + gravity damperFiltering system1. Top filter: flame retardant 560G.2. Ground filter: glass fiber cotton filter (green).Exhaust filter: simple M-type filter cotton, no filter bag, no environmental protectionSealing board wall 1.As shown in the three-dimensional diagram, the outside is welded with corrugated board, and the inside of the room and the hot air need to be added with 50mm EPS insulation board2.Single side corrugated board for non-ventilated part of equipment roomTelescopic partManual push-pull telescopic track structure (2 people flexibly push and pull, such as video)Heating system304 stainless steel heat exchanger, equipped with G20 diesel burner heating, equipped with 4 smoke pipes and rainhatLighting systemAustralian external approach, 8 group of lower row lightsElectric control systemEquipped with conventional Australian method electric control system, star-delta start, with pressure gauge, wire color according to Australian requirements, etc.Power supply415V,3phase,50HZTotal power 16.5KW      RemarkOptional gas heating FS20 burner
