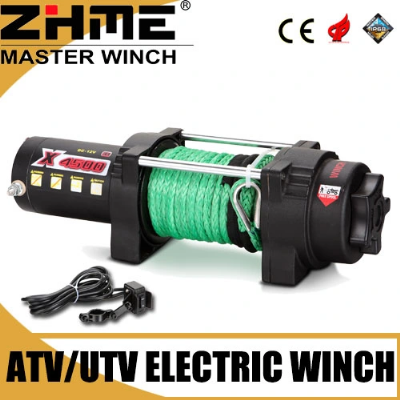

4500lbs 12 Volt ATV Auto Parts Light Duty Winch

Features: 1.Low current and high efficiency minimize battery drain motor.2. Low-profile design will fit ATV and UTV. 3. All metal construction enhances strength and long life.4.Long and strength drum improve line pull per layer.5.Fully independent and automatic braking ensures safety and reliable braking system.6. Proven design for resistance to severe environmental conditions water resistance.7. Aircraft grade wire rope, or synthetic rope is optional.8. Remote switch & wireless remote control being alternative.9. Our products are of well-designed, beautiful appearance and easy to install.Specification:Rated line pull: 4500Lbs (2041kgs) single lineMotor:Permanent magnetic motor 1.8hp /1.3kw,12V DCGear Train:3 stage planetaryGear ratio: 198:1Clutch:Sliding Ring gearBraking action:Automatic in the drumFairlead:Aluminum hawse fairlead Synthetic rope:6.3mm ×15mDrum size:50mm×119.5mmDimensions: 391mm×114mm×120mmMounting bolt pattern:165mm×76mmBattery:Recommended 650 CCA minimum for winching 25 square mm,72"(1.83m)N.W: 26lbs (12kgs)Packing:480mmx250mmx220mm(800pcs per 20' container)Line speed and motor current (first layer)Line pullLbs0100030004500Kgs045413602041Line speedFPM1610.57.23.9MPM4.93.22.21.2Motor currentAmps1770135210Line pull and cable capacityLayer of cable1234Rated line pull per layerLbs4500362530102596Kgs2041164813681180Cable capacity per layerFt.12.526.943.349M3.88.213.215Shipping Service:We can arrange you transportation, we have our own shipping and express company, or we can use your forwarder. How to choose a ZHME Winch for your vehicleCan't decide which winch is right for you? The best way to choose is to calculate the line pull needed for the application. To do this multiply your vehicle's Gross Vehicle Weight (GVW) by 1.5 - this will give an approximation for how big your winch should be. Typically, the first layer of rope around the drum is the max load the winch is capable of. Each additional layer deducts about 10% off the rated line pull. So for a winch rated 9,500lbs, the second layer will pull 8,550lbs, the third 7,700lbs, etc. A loss of pulling power can also be experienced when the rope isn't spooled evenly on the drum. So re-spool your winch before you go out!
