Diezoresistive Intelligent Pressure Circuit Board

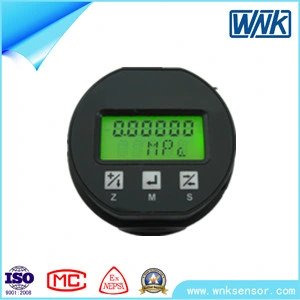

JT2088 Diezoresistive Intelligent Pressure Circuit BoardJT2088 Diezoresistive Intelligent Circuit Board replaced the original 4~20mA analog board. With the main body of Microcontrollers CPU, JT2088 is capable to do logical operation and programming. It combines analog and digital circuit in one machine, so is able to output analog signal as well as digital signal. Parameters configuration and compensation of transmitters can be done by buttons on LCD module and internal debugging program. JT2088 supports standard diffused silicon, strain gauge,piezoresistive ceramic pressure sensors. It is suited for 2088 housing.Features - Intelligent Pressure Circuit Board 1.Two wires working mode provides sensors with two exciting ways - constant current and constant voltage.2. Calibrating as per full scale realizes bulk production3.Easy to do temperature compensation, under -20~70ºC the complete machine accuracy better than 0.5% (including accuracy of sensors)4.Three points calibrating, complete machine accuracy better than 0.2%. Multi-point calibrating is available as required.5.AD accuracy > 20 bits, DA accuracy > 16 bits;6.span can be changed on-site by LCD module buttons without standard pressure source7.Small signal wiping off and reset function8.LCD head is available to use once connected with sensor, free from calibration. And the head is dismountable, customers could equip LCD indicator or not. Technical Parameters- Intelligent Pressure Circuit Board Supply powerDC12-32V (DC 24V is suggested)Constant current excitation0.4mA(suitable for diffused silicon, strain gauge sensors)Constant voltage excitation2.5VDC(suitable for piezoresistive ceramic pressure sensors)Sampling rate20~30times/sDisplaying and bitsLCD with backlight, displaying 5 bits, and 4 decimal placesDisplaying units Ten displaying units as KPa, Pa, MPa, mmH2O, mH2O, mbar, bar, PSI, M,%Output resolution1uATemp. compensation accuracy-30~70ºC complete machine accuracy is better than 0.5% (including accuracy of sensor)Linearity accuracyComplete machine linearity is better than 0.2% (Multi-point calibrating is available as required)Stability0.2%/YearRange ratio10:01Circuit protection Measurement surge current protection, reverse power protectionCircuit design Intrinsic safetyIsolation range>200MCommunication ProtocolPrivate protocolAdjusting methodby buttons on LCD head or program on pcDimensions OD=52mm, Mounting hole pitch=44mm (suited for pressure and level transmitter in 2088 housing)Motherboard buttons operationreset, lower range calibration(zero drift under pressure source), upper range calibration (full scale calibration)LCD head buttons operationchanging span units, decimal place, output features, changing damping time, currant fixing, write-protection,factory reset and zero clearing  FAQ Q: Are you trading company or manufacturer ?A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.Q: What's your quality control system?A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.Q: What is the warranty of your products?A: 12 month from shipment date, for non-man-made damages.Q: Shipping and DeliveryA: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.Large orders are recommended to ship by seaIf you have another question, pls feel free to contact us as below
