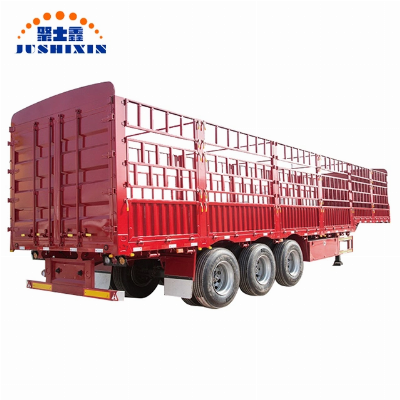

3 Axles Fence/Stake Semi Trailer for Bulk Cargo Transport

3 Axles Fence/Stake Semi Trailer for Bulk Cargo Transport1. Product Functions for stake semi trailer:1. This series side wall semi trailers ,fence semi trailer and van semi trailer are mainly used in heavy duty transportation for constructionor logistic companies, such as bulk cargo transportin.Also the side wall of them are detachable.So you we can use it transport standardcontainers.2. The capacity is for 30tons-500tons  , we can manufacture it according to your needs.3. The axles can be Fuwa / Bpw with different tonnages by your need with price differences.4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc5. The loading deck can be concave beams, tire appeared cover, totally flatbed, or extendable.6. The loading ramps can be rear end designed, or front loading ladders, which can be mechanic spring ladders and hydraulic loadingramps by different needs  2. Main Product Specification for the stake sideboard semi trailer:Dimensions13000×2490×3750mm (can be customized)Loading Capacity60TAxleLoading capacity of 13T/16T, FUWA brand (BPW and China brand for options)No. of axles3Rim9.00-22.5 (8.0-20 or others as needed)No. of rims12Tire12 R22.5 (315/80R22.5, 11R20 or others as needed)No. Of tires12SuspensionMechanical Suspension with stamping plate rigid leaf springs(Germany Type or America Type)Or Air Suspension(China brand or BPW brand)Leaf springs90mm×13mm×10 or 100mm×12mm×12King pinJOST brand 2.0 or 3.5 inches bolts type or Welding typeLanding gearD200T JOST brand or 28Tons (two-speeded) China brandStringerHeight: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm;Material is Q345 carbon steel.Side beam16mm or 18mm channel steel (Material is Q235 carbon steel)Side panel600mm-1500mm in height for your choiceBrake chamberWABCO RE 6 relay valve; T30/30+T30 Spring braking chambers (TKL brand);Two pieces of 45L air tanksABSOptionalContainer locksFour, Eight or Twelve pieces (Lifting type or Twist Screw type) for optionsValveWABCO valveLightLED light by international or European standardsVoltage24VReceptacle7 ways (7 wire harness)Tool boxOne piece with a set of standard tools by factoryPaintingComplete chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paintShipping TermsBy bulk cargo carrier, RORO or 40HQ container3. Our Advantage:1- With well experienced semi trailer production company to offer high quality and competitive prices semi trailer to our worldwide valuable customers.2- An professional team which is experienced with international market and has strong technical capability to customized cost effective,because wehave more than 60 Designer and engineers as our solid backing.Among them,our technical adviser has more than 40years' experience in the trailer field.3- Sell well in the international markets, such as African market ( Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect.), Middle East, South Asia and South-America market etc.4- Two Years Guarantee for all the the beam of trailers, timely shipment;4. Factory Show:5. Guarrantee for the parts of the Stake Bulk Cargo Truck Utility Semi-trailer:ITEM NAMEWARRANTYITEM NAMEWARRANTYMAIN FRAMEFRAME1 YEARRUNNING GEARAXLE6 MONTHSSUSPENSION6 MONTHSAXLE BEARING3 MONTHSKING PIN1 YEARWHEEL HUB3 MONTHSBALANCE ARM3 MONTHSTIRE6 MONTHSITEM NAMEWARRANTYITEM NAMEWARRANTYBRAKING DEVICEBRAKE DRUM3 MONTHSSUPPORT DEVICELANDING GEAR6 MONTHSBRKE CHAMBER3 MONTHSSPARE WHEEL  CARRIER6 MONTHSAIR RESERVOIR6 MONTHSITEM NAMEWARRANTYOTHERSLEAF SPRING3 MONTHSBRAKE CHAMBER DIAPHRAGM3 MONTHSEMERGENCY RELAY VALVE3 MONTHSBRAKE SHOE3 MONTHSRELAY VALVE3 MONTHS6. Quality Control for stake semi trailer:1- For Each trailer, we must do the testing and inspect the quality,and we have more than 30 QC&QA people on the production process and the testingprocess and warehouse to gurantee the quality of the every details.2-You wil get the inspection certificate according to customer demand for every trailer which given by an independent third party certification company.3- You will get the out-standing quality assurance 7. Packaging & Shipping for stake semi trailer : 8. Excellent&Perfect Service & Support:1- Whenever reliability, safety and economic is needed, there is a solution. 2- With a full range of trailer spare parts support, spare parts supplying within 3 working days.3- Seriously according to the customer's requirements, and flexible cooperating mode.4- Offer the professional trailer drawing after confirming the order.5- Excellent after-sales service & product maintenance.
