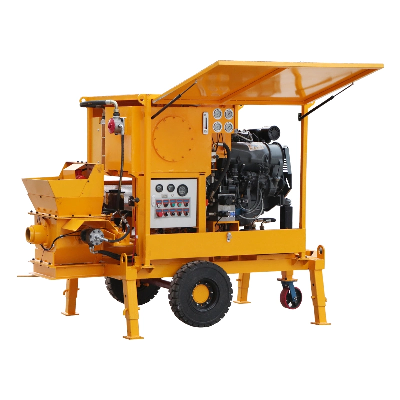

Hot Sale Diesel Engine Trailer Concrete Pump with Ce Certificated

Product DescriptionHot Sale Diesel Engine Trailer Concrete Pump with Ce CertificatedLCP8/80-30D Concrete Pump is a multi-purpose heavy-duty Swing-Valve concrete pump with an air cooling diesel engine, hopper mixer, hopper vibrator, automatic lubrication, and LS variable output. The concrete convey, Swing valve, and hopper mixer are respectively driven by three hydraulic pumps, among them, the concrete conveys hydraulic pump is LS piston high-pressure pump.Detailed PhotosProduct ParametersFeatures:Variable output(LS)Automatic LubricationVibrator in hopperMixer in receivingVibrator in hopperMixer in receiving hopperModelLCP8/80-30DRated Output3-8m3 /h (LS)Pump work pressure38 BarAcceptable Max. Aggregate Size20mmCylinder diameter100mmCylinder Stroke550mmPump ValveS ValveMax. Horizontal Conveying Distance200mMax. Vertical Conveying Distance100mConcrete Slump7 -15cmConveying Hose Inner Diameter100/80/50mmDiesel engine30kw@1800rpm 4-cylinder, air coolingDimension(L × W × H)3000*1600*1900mmNet Weight1650kgLet's get in touch for more information!Typical Applications Company Profile
