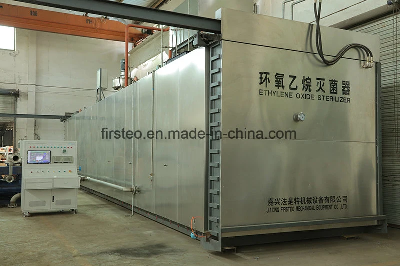

Ce Standards Eo Sterilizer Chamber Sterilization

Company introduction1.  Our products include the overall facilities of EO sterilization chamber, the preconditioning chamber, degassing chamber and EO waste gas treatment apparatus.2.  Products meets the requirements of ISO9001:2008 and ENISO134585:2003/AC2009.3. The only manufacturer of EO sterilization that uses hot air heating system in China, and had applied the "utility model patent certificate".4.   The leading place of ethylene oxide sterilization in China.5.   Have a large number of high quality customers: Jiangsu Fresenius Medical Care (Germany), Nanchang Kelinnike Medical Appliance (Germany), Shenzhen DooJung Group (Korea), Nanjing micro-tech, Winner Medical etc.6.   Products had exported to many countries, such as Spain, South Africa, Ecuador, Laos, Vietnam,  Argentian ,etc.Products photosThe process of E.O. gas sterilize:1.Put the goods in the sterilizer (Lock the door, make sure it can't be open by anyone else).2. Temperature Adjusting: Adjust the temperature to the necessary 50ºC, takes about 1~2 hours.3. Pre-Vacuum: Vacuum the air in the sterilizer, it takes about 6~30 minutes.4. Air Pressure Holding Test: Checking the tightness of sterilizer, make sure no gas leaks. 5. Pre-humidification: pre-humidify the sterilized goods to 55%RH humidity, it takes 1-1.5 hours.6. Inject EO gas into the chamber: 20- 30 minutes7. E.O. Sterilizing: make sure every condition is not changed, keep it 4 - 8 hours.8. Sterilization finishes: clear the residue E.O. gas.  Vacuum degree 60 Kpa. Blow Air inside, repeat at least 3 times. It takes  about 1 hour.9. Unlock and open the door, pull the cart outside the sterilizer.Our sterilizer chamber can sterilize two batch of cargos in 24 hours.The Process of Ethylene Oxide Sterilization:1. preconditioning stage2.sterilizing stage3.degassing stage4.waste gas treatmentEtO Gas Sterilizer specificationsTechnical Info.SpecificationsMachine TypeEthylene Oxide sterilizers / Sterilization chambersChamber Capacity1 to 100 m3Chamber TypeRectangular type, 1 to13 pallets (80x120cm) in single or double rowsDoors TypeDouble doors with pneumatic sliding systems (Manual and Automatic control)Chamber MaterialStainless steel construction in chamber (grade 304 or 316)Hot water CirculationDouble jacket with 4 circulations systems of hot water doors and chamber. Pumps and water tank integratedSteam GeneratorSteam generator with tankFiltrationWater treatment by filtration systemETO VaporizerEthylene oxide vaporizerETO CirculationETO circulation system (ATEX circulation pump)Pneumatic EnergieAir compressorElectic Energie380 AC, 50Hz or 60HZ Software / ControlsSoftware/controlsSoftware : Automatic and manual control, data storage, graphic recorder (temperature, humidity, pressure, time, cycle steps…). Safety password administration and operator.PLCSIEMENS or SCHNEIDER Programmable Logic ControllerSensorsPressure, temperature, humidity sensorsComputerComputer with printer and desk Options (systems)SensorsEX/ATEX sensorsNitrogen generatorNitrogen generatorMaintenance ServiceExtra Services after sales  SoftwareSoftware qualified FDA 21CFR part 11Our Software and Data Processing ReportsDetails of Ethylene Oxide Gas (eto) SterilizationContainer Loading of Ethylene Oxide Gas (eto) SterilizationPre-Sales ServiceDrafting technical agreementsDrafting technical waysManufacturing equipmentAfter-Sales ServiceTraining how to instal the machine, training how to use the machine.  Engineers available to service machinery overseas.Maintenance / repair and parts supply.
