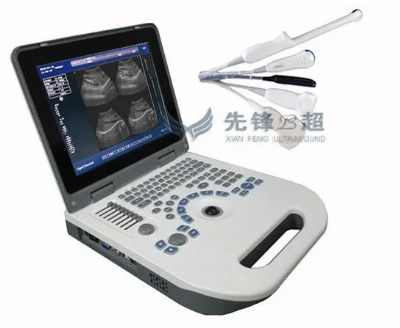

Laptop Portable Handheld Trolley Ultrasound Scanner for Human & Veterinary Xf50

I.Specification:ModelXF30A(XF50) Notebook ultrasound ScannerDisplay Modes3.5MHz/R60 convex array probe:B,B/B,4B,B+M,M6.5MHz/R13 Dimpling array probe:B7.5 MHz/L40 Line array probe:BImage Mutiplying    Factor3.5MHz/R60 convex array probe: x0.8, x1.0, x1.2, x1.5,x1 .8, x2.0( 6modes)x0.8, x2.0 (display penetration depth)6.5MHz/R13 Dimpling array probe: x0.8, x1.0, x1.2, x1.5 (4 modes)7.5MHz/L40 Line array probe: x0.8, x1.0, x1.2, x1.5 (4 modes)E-zoommagnify 2 times of real time imageDynamic Range0~120dB ajustableFocus Position1,2,3 and 4-segments dynamic electron focusingImage Processing:γcorrection, frame correlation,point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc.According to the user’s pattern style preference, the    parameter will be set up automatically and saved ,Boot default this parameter. This default of    parameter can aslo be modified in the menue.Frequency Conversion:2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of    frequency conversionfrequency range applies 5.5 MHz/6.0 MHz/6.5 MHz/7.0  MHz/7.5MHz can match high frequency probeMeasuring FunctionDistance,circumference/area (method of ellipse, method  of loci), volume, heart rate, gestational weeks (BPD,GS,CRL,FL,HL,OFD,TTD,AC),  expected date of confinement and fetus weight, etc.Annotation Functionhospital name, patient’s name, age and gender64 body marks (with probe’s position);Full-screen character annotation; Real-time clock    displayPuncture Guide3.5MHz convex array probe can display puncture guide line in B modeGain Control8 segments TGC and overall gain can be adjusted respectivelyImage Polarityleft and right flip, black and white flip, up and down flipCapacity Cine Loopreal time display 256 consecutive images which are memorized successivelyImage Playbackseries playback or check one by onePermanent Storage:128 imagesOutput InterfaceVGA video output offers connection to SVGA color displayPAL video output offers connection to PAL display and printervideo image recorder and image workstation, etcUSB PortOffers storing images in USB flash diskII Application:III Features:1. Mass memory , cine loop and permanent storage.2. Radium  Caved buttons and Silicon backlit buttons to be chosen;3. Intelligent   fluorescence trackball.4. 8-segment   TGC control. Overall Gain control5. 2 USB ports , Upgraded and expandable printer function;6. 2probe connectors. Probe automatic identfication;7. 2SVGA   video outputs and 21 PAL video outputs offer connection to video image   recorder and image workstation. etc.8. Report   page is generated automatically.9. According to the user's   pattern style preference, the parameter will be set up automatically and   saved ,Boot default this parameter. This default of parameter can aslo be   modified in the menue.Standard Configuration:1.One host machine2.One convex array probe:F=3.5MHZ3.One power adapter4.11.1 V 3000MAH Li battery5.USB portIV Demo imagesV Good marketing feedback from abroad clientsVI Manufactuer Buliding and Production lineWe are an experienced #Manufacturer in China, focusing on research development and production in black and white ultrasound and color doppler ultrasound scanner since 2005. We have been doing #OEM and ODM more than hundreds of companies and factories over past 15 years.Our products are affordable , reliable and competent. We sell over 10000 units to all over the world, and repair rate is less than 1%, all production process is strictly exectued with #CE and ISO .VII Certificates  CE,ISO,Free sales certificate,Registeration certificate for medical device,Manufacturing license,qualified industrial registerations & ect .VIII Medical device exhibitionIX Transportation/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
