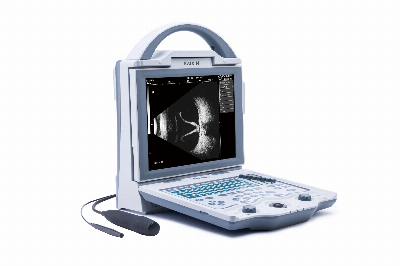

Eyes Hospital Instrument Ophthalmic Ultrasound Scanner a/B Scanner

Ophthalmic A/B scan ODU5General Parameter:1. Adopt ARM9 Embedded Control Systems, FPGA signal processing system and elaborate selected ultrasonic hardware system..2. 10.4 inch high resolution LCD screen.3. Menu operation Language: Chinese/English.4. Double probe sockets.5. A mode probe: 10MHz, imported probe with fixation light.6. B mode probe: 10MHz, imported transducer.7. Display mode: B, B/B, 4B, B/A, A.8. Gains range: 0--120dB.9. Dynamic range: 30-100dB, visual and adjustable.10. Gray: 256.11. Intelligent TGC adjustment: 8 segments.12. Build-in D disk: 4GB, save mass data, images, reports, etc.13. Report function: print screen, IOL report, case report with picture, etc.A scan parameter:Resolution:0.01mm.Gain adjustable:0-120dB. Measurement range:12-43mm(1640m/s). Accuracy:±0.02mm.Eye mode:normal/aphakia/dense cataract/PMMA, Acrylic & Silicon for Pseudo Phakic eyes.Measuring Mode:Contact and Immersion, automatic and manual. Measurement methods:A single-point measurement(under A mode); five-point measurement(under A mode). Calculation:std. deviation, average, automatical measuring 8 groups and average, accompany waveform, results correctable.IOL Formula:SRK-II, SRK-T, BINKHORST,HOLLADAY, HOFFER-Q, HAIGIS.B scan parameter: Scan mode: High accuracy stepping motor drive sector scan.Scan Angle:53°. Display Depth:0~56mm. Gray: 256.Depth seletion:8.Frame correlation:4. Edge enhancement:4.Compression Curve:4.Post-processing:8.image storage:100 frames permanent image storage.General Measurement:multi-electronic-rule to measure distance, circumference, area(trace method, ellipse method),volume (ellipse method), angle , histogram, profile , stenosis and curvature etc.Standard Configuration:1Main unit: 1 pc210MHz mechanical sector B probe: 1 pc.310MHz A probe : 1 pc.4Network cable: 1pcOptional Configuration:1Large lithium battery 4400mAh 2Trolley3Ethernet switch4Battery charger5Foot switch     /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
