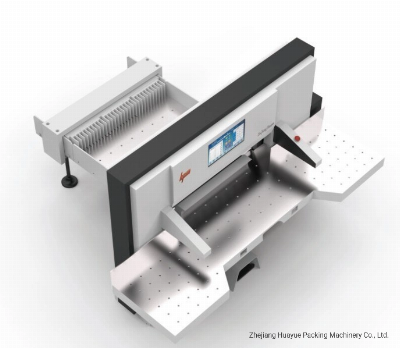

Program Control Heavy Duty Paper Cutting Machine for Printing

HPM137S22 Program Control Paper Cutter      Computer System1. The up-to-date 22" Widescreen LCD, full touch screen; PLC control.2. Eight languages to choose.3. Metric system and British system two units, show the dimensions of the front knife and the back knife. 4. Step less speed adjustment function with latest technology , to make the cutting speed from 30 to 48 times within 1 minute , no need to change knife angle for different cutting material.5. Position resolution of backgauge is 0.01mm, closed-loop control, the locating error is less 0.01mm; No need to adjust locating error. Max. backgauge speed is 30-38m/min. 6. The program storage capacity is 300 programs. Every program can store 299 items cutting sizes. The storage memory has a maximum of 40 years.7. With USB, transmit data, to convenient operator make programming and arrangement via PC. 8. Equipped with fault diagnostics and non-repeat safety guards.it can detect all the position switch state and dynamic  prompt switch failure.make the machine more convenient maintenance.9. The backgauge is driven by a Panasonic servo-motor with four speed levels.10. Use Italy oil pump and hydraulic system.11. With automatic pushing paper function, the distance can be adjusted.12. Adjustable time delay for knife activation, accurate and convenient.13. Uses icons to show operational functions, which are simple and user friendly.14.  With full automatic cutting function. The backgauge and knife movements can be monitored on the screen.      Machine Performance1. Knife-seat guiding structure with sliding block type, cam type for adjusting-knife mechanism.2. Clamp press paper stack through hydraulic system, the spring re-position.3. Worm gear drive mechanism, hydraulic clutch, mechanical brake.4. Hydraulic system adopts Germany advanced technology, the hydraulic units are ISO approved, Italy oil pump.5. One-piece, slot less and chrome-plated cast iron work table is sturdy and easy to maintain.6.Import ball screw with double linear guides to drive backgauge.7.High safety infrared protection device according to CE standard.8.Main electronic units are from French TE and Japanese ORMON famous international brands.            Configuration ListingNoNameBrand, specification & modelOrigin of brand1.Background LCD22''Color touch InterfaceChina2.Control center PLC (CPU224)China3.Backgauge position motorINOVANCE servo motorJapan4.Pick-upAutonicsKorea5.Limit switchTEFrance6.Guarding motorTEFrance7.Air switchTEFrance8.AC ContactorTEFrance9.Miniature relayOMRONJapan10.Switching power supplyTEFrance11.Power switchMoellerGermany12.Ball screwHigh accurateTaiwan13.Linear guiderHigh accurate double linear guidesTaiwan14.Hydraulic systemDouble gear pumpItaly15.BearingNSKJapan16.Work TableSlotless and plated chromium work tableChina17HSS knifeKanefusaJapan    Technical ParameterModelUnit137Max.Cutting Widthcm137 inch53.9Max.Cutting Lengthcm145 inch57.1Max. Cutting Heightmm165 inch6.5Min. Cutting Size(without false clam pplate)mm30 inch1.2Min. Cutting Size(with false clamp plate)mm90 inch3.5Front Table Lengthcm73 inch28.7Max.Clamp PressureN45000Max. Cutting Speedtime/min43Main MotorKW4Net WeightKg4100Gross WeightKg4500Packing Size(L×W×H)cm310×190×210/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
