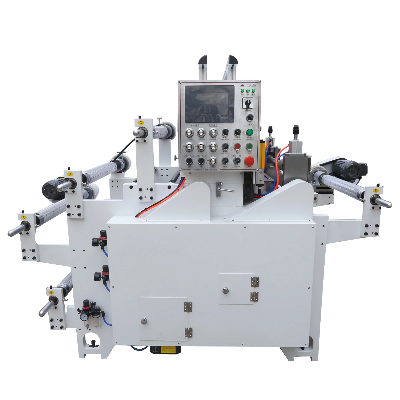

Automatic 700 Gap Cutting Machine Jump Cutter Sheeter

Automatic 700 Gap Cutting Machine Jump Cutter SheeterFunction and characteristicsCQT-700 Gap cutting machine adopts double servo motors (France), four synchronization, the dragging precision can be ±0.05%. The host adopts brake motor, imported from Japan. Work together with Mitsubishi vector transducer, which makes sure machine can work stable under lower speed and under fast speed.Max feeding width is 700mm, the max size of the die is 700*50mm, it can be used for cut simple shape products. it can avoid waste material.Scope or applicationIt is for cut narrow special shape double sided adhesive tapes. Main used for display of laptop, TV etc. Gap cutting and avoid wastage material. The product is onece forming, whcih is helpful to lower the production cost. and increased the productivity quite a lot.Main parametersModel 700mmCutting speed160cuts/minCutting precision±0.0mmSize 2400*1700*1400mmVoltage380v 50hz Weight1700kgMain power2.2kwTotal power5.5kwFeeding route of the materialGap cut productGap die cut product, die is with hole sucking functionInstallation workshop  Customized pre-laminate structure     Customized top rewind parts for rewind wastage of finger lift     Position for adjust the cutting pressure     Japanese blade for cutting straight line, make sure good cutting result.  Machine also ok to use die for cut long rectangle shape  Auto lubrication system  Certifications Factory  Packaging & Shipping  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
