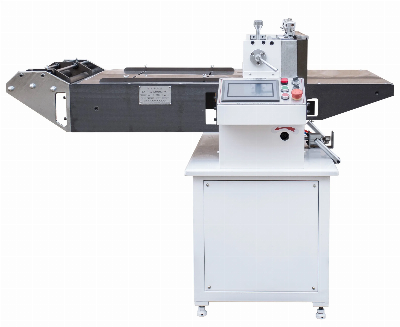

EVA Foam 3m Tape Roll to Sheet Cutting Machine Sheeter

EVA Foam 3m Tape Roll to Sheet Cutting Machine Sheeter  Function and characteristics Imported PLC and touch screen are used for control the machine. It is easy for operation, fast cutting speed and high cutting precision. Scope of application It is applicabel for the cutting of PVC film, insulation sheet, mylar,foam, industrial tape, electronic tape and various material. It can set length, through cut or kiss cut. Main parametersModel CQ-360CQ-500Max feeding width360mm500mmMain power200w750wCutting speed170cuts/min170cuts/minCutting precision±0.10mm±0.10mmSize 1500*850*1150mm1500*950*1150mmVoltage380v50hz280v50hzWeight300kg400kgTotal power1.5kw2.5kwThe sheet cutting machine, it has two types: one is directly from roll to sheet; the other is firstly kiss cut, then through cut.The different position is located in the blade part. 1.Through Cut material directly.This is cut material from roll to sheet, like the standard sheet cutting machine, if your material needs following mark, we also can add the sensor. 2.Firstly, kiss cut, then full cut.If like this type, the procedure need execute two orders, and the sensor is necessary, First step: we can set a length, material through the blade, then kiss cut ( half cut ).Second step: we set another length, after the material run and access the another length, the machine will through cut. Packaging & ShippingCompany Information At Fengri, we employ a fully integrated business model with all departments working closely with each other for a totally synergistic production system and first-class service.Among them, our research and development department -responsible for the development of new products and the improvement of existing products- works hand in hand with the quality control department to provide quality solutions in relation to techniques, product quality, and manufacturing technology. Our manufacturing complex spans nearly 1,500m 2 . It houses 48 pieces of advanced processing equipment.FactoryThe Exhibition/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
