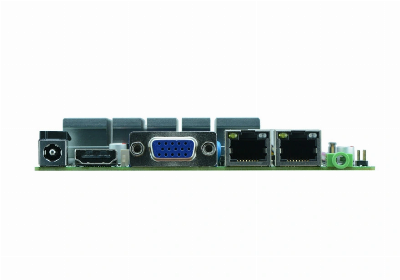

J1900 Mini Motherboards with Dual LAN, Computer Parts Main Board

Intel®J1900/2.00GHz quad core processor,TDP 10W1*SO DDRIII slot,support 1600/1333MHz DDR3L/1.35V memory, up to 8GB1*VGA,1*HDMI,1*LVDS port(Support dual channel 24BIT)2* RTL8111F Gigabit EthernetTiny PC Intel Celeron J1900 Pfsense Fanless NUC Dual Lan Nano Itx Motherboard Dual LAN LVDS J1900 Embedded X86 Intel NUC Small Motherboard SpecificationModel No.STX-N29_2L VER:1.5ProcessorIntegrated Intel®J1900/2.00GHz quad core processor,TDP 10WChipsetIntel® Bay trail SOCMemory1*SO DDRIII slot,support 1600/1333MHz DDR3L/1.35V memory, up to 8GBDisplay  Integrated Intel®HD GraphicsProvide 1*VGA,1*HDMI,1*LVDS port(Support dual channel 24BIT)Support VGA;HDMI;LVDS dual independent displayNetwork2* RTL8111F Gigabit Ethernet, support Wake On LAN/PXEStorage1* SATA HDD port1* MSATA slot, support SSD/WIFI,SSD transmission rate up to 3GbpsAudio Onboard ALC662 6 channel high fidelity audio controller, support MIC/Line-out. Power amplifier.Amplifier suggest to use 2Ω5W trumpetExpansion1* Mini-PCIE slot, support WIFI/3G moduleI/O Port        1*USB2.0,1*USB3.01* HDMI1* VGA2* RJ-45 LAN port1* Line out(green),1* MIC(purple)1* RJ-45 COM port1* Switch button1* HDD LED1* 12V DC_JACK inputBuilt-in I/O           1* LVDS port(2*15pin),support dual channel 24BIT LCD display1* LVDS backlight port (1*6pin)1* JVGA1 port (1*12pin) same signal with DB151* RS232 port2* USB2.0 port (2*5pin)1* PS/2 MS/KB port(1*6Pin)1* Front panel audio port (2*5pin)1* SIM socket1* HDD power supply port1* Front panel function button and LED indicator port (2*5pin)1* 4pin ATX 12V input output connector1* Power amplifier port(1*4pin)Fan Connector1* CPU fan connector 4pinGPIOSupport 4 way input output GPIOBIOSAMI 64Mb Flash ROMWatchdogSupport hardware reset function (L256, 0~255 seconds)Power TypeDC_12V power adaptorWorking Temp.-10ºC~60ºCStorage Temp.-20ºC~70ºCWorking Humidity5%-95% relative humidity, non-condensingDimension120mm x 120mmPictures Order InformationNo.ModelProcessorFrequencyMemoryVGAHDMILVDSLANUSBCOMPower1STX-N29_1L VER:1.5J19002.0G1*SODDR3L112ch/24BIT162DC/12V2STX-N29_2L VER:1.5J19002.0G1*SODDR3L112ch/24BIT242DC/12V   EnclosureJ1900 Mini Mainboard Small Motheboard With LVDSTiny PC Intel Celeron J1900 Pfsense Fanless NUC Dual Lan Nano Itx MotherboardFanless J900 Motherboard 2 LAN Small Motherboard DC 12V  With LVDSMini Mainboard Small Motheboard NUC OEM2 Lan Motherboard J900 Mini MotherboardJ1900 Nano Motherboard Nuc Motherboard PfsenseJ1900 2 Lan Motherboard Motheboard NUC OEMIntel Nuc Dual Lan Mainboard Mini MotherboardSmall MotherboardsJ1900 Mini Motherboards with Dual LAN   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
