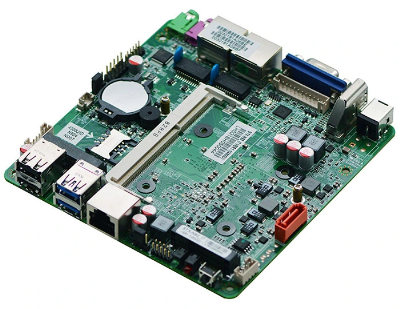

Mini PC Computer Mainboard

Intel® Core I7 4500U/1.8GHz dual core quad thread processorIntel®Haswell-U SOC chipset,1* VGA,1*HDMI1* SODIMM memory slot,support 1600/1333MHz DDR3L/1.35V RAM,Max up to 8GB2* RTL8111F Gigabit Ethernet(can do one LAN),Support Wake-on-LAN/PXE4* USB2.0,2* USB3.0,1*RS232X86 Intel I7 4500U 2 Lan Fanless Motheboard Nuc OEM Nano Motherboard OEMIntel Haswell I7 4500U Dual LAN USB3.0 Fanless Small Micro Motherboard   Model No.STX-N92_I7 VER:1.1ProcessorIntegrated Intel® Core I7 4500U/1.8GHz dual core quad thread processorChipsetBased on Intel®Haswell-U SOC platformMemory1*SO DDRIII slot,only support 1600/1333MHz DDR3L/1.35V memory,up to 8GBDisplayIntegrated Intel®HD Graphics 4400Provide 1*VGA,1*HDMI portSupport VGA;HDMI Synchronous/asynchronous displayNetwork2* RTL8111F Gigabit Ethernet(1*RTL8111F optional),Support Wake On LAN/PXEStorage1* MSATA SSD port 1* SATA HDD portAudioOnboard ALC662 6-channel high fidelity audio controller,support MIC/Line-out Expansion1* Mini-PCIE slot,support WIFI/3G module1* MSATA slot,support SSD/WIFI(default SSD),SSD transmission rate up to 6GbpsRear Panel I/O2* USB2.0, 2*USB3.01* HDMI1* VGA2* Gigabit Ethernet RJ-45 port(1*LAN optional,USB3 and LAN2 are optional)1* Line out(green),1* MIC(purple)1* CISCO standard COM port1* Power switch button1* 12V DC JACK input1* Power LED, 1* HDD LEDBuilt-in I/O1* JVGA1 port               (1*12pin) same signal with DB152* USB2.0 port              (2*5pin,same signal with USB3)1* PS/2 MS/KB port          (1*6Pin)1* SIM socket1* HDD power supply connector1* Front panel functioning button and indicator port(2*5pin)1* 4pin ATX 12V input output power supply portFan ConnectorSupport fanless cooling, preserved 1* CPU fan connector   3pinGPIOSupport 4 ways input output GPIOBIOSAMI 64Mb Flash ROMWatchdogSupport hardware reset function (L256, 0~255 seconds)Power TypeDC 12V single power inputWorking Temp.-10ºC~60ºCStorage Temp.-20ºC~70ºCWorking Temp.5%-95% relative humidity, non-condensingDimension120mm x 120mmOrder InformationNo.Product ModelProcessorGHzMemoryVGAHDMILVDSLANUSBCOMRS485Power1STX-N92_I7 VER:1.1I7-4500U1.8G1*SODDR3L11X261XDC/12V2STX-N92_I5 VER:1.1I5-4210Y1.5G1*SODDR3L11X261XDC/12V   FAQ-X86 Intel I7 4500U 2 Lan Fanless Motheboard Nuc OEM Nano Motherboard OEM1. Do you provide OEM/ODM service?A: Yes,.We can support OEM/ODM service, the process of customization is following:1) provide your specific requirement. 2) our design engineer draw the design draft.3) you confirm the design draft. 4) we start produce it. 2. What is the Minimum Order Quantity (MOQ)?A: We can sell one piece sample for your test.3. What payment method do you use?A: T/T,PayPal.4. What is the lead time of your product?A: 3 days for sample, 15 working days for large quantity. 5. How does your factory do related quality control?A: Quality is top priority. We firstly check the motherboard quality after manufacturing, secondly check the computer before storage in warehouse and thirdly check before shipping out.6. What is the warranty time of your product?A: 1 year warranty for non-artificial damage, for the 2nd to 3rd year we can repair it free, but will charge for the parts that needed to change.7. Does your motherboard can work 24*7 hours?Our low power consumption industrial boards have passed very strict tests, there is no problem to work 24*7 hours.8. Are you a factory or trading company?A: R&O is a leading R&D and manufacturing technology-innovation enterprise specialized in Industrial Motherboards and embedded products industry.Our products include: mini-itx motherboard,all-in-one motherboard, 3.5'' industrial motherboard, firewall motherboard, NVR&industrial motherboard, mini PC , HTPC, all-in-one PC, embedded PC, vehicle computers, cloud terminal, networking security, OPS mini PC, NAS storage server, etc.Computer, OEM / ODM available. 9 If we come to China, can you arrange the visiting to your factory?A: We warmly welcome and look forward to your visiting to our factory at any time. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
