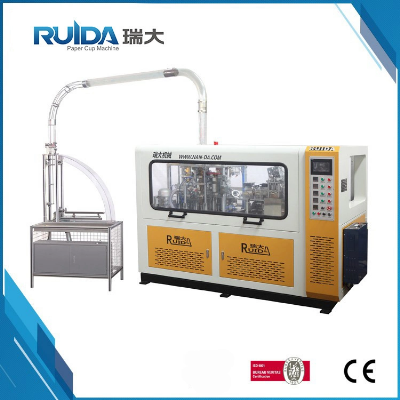

High Speed Paper Cup Making Machine

The High-Speed Paper cup machine comes with two turn plate, open intermittent indexing cam mechanism and gear transmission, longitudinal axis structures. The whole machine adopts automatic lubrication system, which makes all mechanical parts working much more smoothly. Cup body and bottom are sealed by ultrasonic and hot device. Cup top curling has two steps, rotary curling and heating figuration, which makes the curling more stable and better appearance. The machine comes with PLC control system, photoelectric failure detecting, and can stop working automatically if the machine has any problem, it can greatly improve operation safety and reducing labor cost. The machine can finish the whole process including paper feeding, side sealing, cup bottom punching and feeding, heating, knurling, cup-top curling, cup collection.  FeaturesPLC control, touch screen operateHigh speed up to 130 cups/min Simple forming station and minimum stroke 2 piece of Hot air station for cup body and also 2 piece for bottom sealing (hot air device is imported from Switzerland).Have an automatic cup delivery system with counter. It's easy to make different size of cups by changing the mold.   With automatic lubrication system. Easy operation.Easy maintenance.   Less noise.Product DescriptionModelRD-12/22-100ACups Specifications6-16OZ   16-22OZCup Top Diameter65mm-92mmCup Height60mm-70mmCup Bottom Diameter50mm-65mmCups materialSingle PE/Double PE coated paper  (Any one can be)Paper Specifications210-380g/m²Speed130-150 pcs/minWeight3600kgGas source0.4m³/minGeneral Power 10KwPower supply 220v/380v, 50Hz Packing Dimensions2730*1660*1800mm(L*W*H)PortNingbo/ShanghaiShipping details By sea/air,according to customers' requirements.Cup UseRound paper cups, drinking , noodle and vending cups ice-cream and food containersOther ProductsPaper cup machinery,die cutting machine,paper cup forming machine,cup top flatten machine and other products.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
