Automatic Adhesive Paper, BOPP, CPP, Pet, PE Slitting Machine Slitter

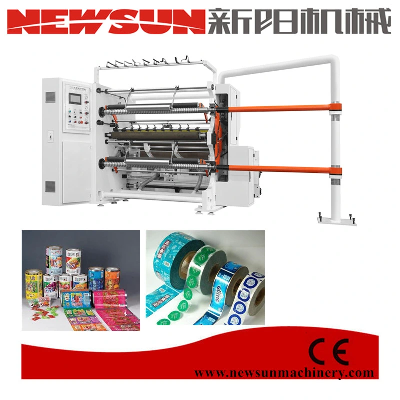

We will attend SINO Label 2018 exhibition in Guangzhou on 10th.March.2018We will attend Chinaplas 2018 exhibition in Shanghai on 24th.April.2018FHQR-1300 model Automatic Adhesive Paper, BOPP, CPP, PET, PE Slitting Machine SlitterUseThis machine is used for cutting different kinds of roll materials ,such as BOPP,PET,CPP and PVC,etc.Feature1. PLC integrated control is used in electrical control system, human-machine communication is carried out by touch screen, Set and display working parameters according to the requirements from different products.2. Magnetic power brake is adopted for unwinding, roll diameter is automatically calculated by PLC to achieve automatic tension control.3. Variable frequency motor is adopted for rewinding, active winding, roll diameter is automatically calculated by PLC to achieve automatic tension control.4. Loading and unloading using air shaft and lifting by air cylinder . It is easy for loading , unloading and with high efficiency , has web guide system(EPC) .5. Using the flat knives for slitting , air exhausting device for waste .6. In the system, there are calculations of meter, roll diameter, automatic machine stop when lack of material etc.7. The system has perfect mechanic, electric and pneumatic design, also good safety protection8. Rewinding with double slip air shaft(Quick lock air shaft).Main techinical ParametersUnwind width400 - 1300mmSlitting materialBOPP Film12-180um, PE, PVC Film 40um - 150um.Maximum unwind diameterφ800 mmMaximum rewind diameterφ600 mmPaper Core Diameter76mmMaximum machine speed 300 M/minMin. Slitting width30 mm Range of slitting width30 - 1300mmDeviation correction precision ≤ 0.4mmTension setting range 2 - 30 KgDraw roller motor3 kwTotal power6 kwMachine size2350 x 3600 x 1700mmMachine mass2600kgMachine colourTBAMachine detailsI /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
