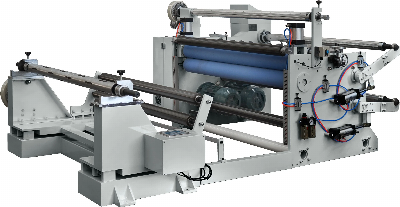

PVC Pet Film Liner 1300 Slitting Machine Splitter Equipment

PVC Pet Film Liner 1300 Slitting Machine Splitter EquipmentMain Parameters:ModelFQ-1300 Max Feeding Width(mm)1300Main Engineer Power(kw)4Speed(m/min)110Size(L*W*H)(m)2.4*2*1.3Weight(kg)1200Unwinding diameter(mm)800Rewinding diameter(mm)450precision(mm)±0.10Power380V 50HZFunctional characteristics:This machine is slitting equipment of high precision and high sensitivity, with inflatable bearing is used for feeding and receiving materials. Imported magnetic powder clutch is adopted to control the tension. Imported gas sensitive device is adopted to detect the rectification of rolling, with fully automatic hydraulic rectification control. Automatic detection, rectification and metering can be realized. It is characterized by accurate slitting, fast slitting speed, ease of operation and maintenance, etc. There are two selection for main engine, single electric motor, double electric motors. Purpose:It is applicable for the slitting tooling of industrial adhesive tape, cellphone tape, protective film, copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, etc. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.Slitting filmPicture of the machine without lamination functionPicture of the machine with lamination functionSlitting the release paper:Slitted film:Laminating slitted silicon tape with liner:Package of hostPackage of unwind partGlance of the parts of the slitting rewinding machine   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
