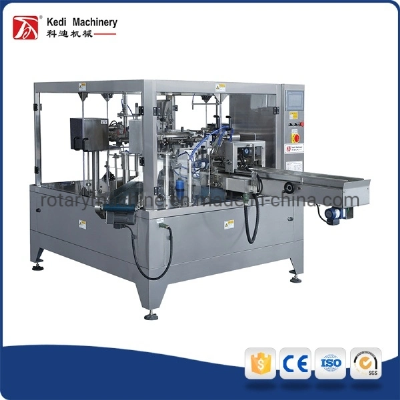

Sauce Paste Double Filling Packing Machine

Automatic Rotary Packing Machine(Double filling) Function and Characteristics: 1. Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly. 2. Frequency conversion adjusts the speed: This machine uses frequency conversion equipment, can be adjusted within the range according to the needs of realityin production. 3. Automatic checking: No pouch or pouch open error. No fill, no sealing. The bag can be used again, avoid wasting packing materials and raw materials. 4. Safety device: Machine stop at abnormal air pressure, heater disconnection alarm. 5. Double filling working position, can filling two types material, such as: Solid&liquid, two types liquid etc. 6. The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clips, easily operate, and save time. 7. Use the plastic bearing, don'tneed put on oil, lesspollution. 8. Use no oil vacuum pump, avoid polluting the environment in the production. 9. The packing materials loss low, what this machine is used the preformed bag pattern is prefect and has a high quality of the sealing part, this improved product specification. 10. Product or packing bag contact parts adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food. 11. With different feeders changed to pack solid, liquid, thick liquid, powder and so on. 12. The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE, PP and so on. Preformed bag made by film and paper. Specifications: Model: GD8-200 Working position: Eight-working position Pouch material Laminated filmPEPP etc. Pouch patern: Stand-up, spout, flact Pouch size: W: 100-210mm L: 100-450mm Speed: ≤ 50pouch/min(The speed depends on the pouch status and filling weight) Weight 1700KGS Voltage: 380V 3phase 50Hz/60Hz Total power: 3.5KW Compress air: 0.6m3/min(supply by user) Product Process: 1. Giving bag 2. Coding date 3. Open bag 4. Filling & vibrate 5. Filling 2ND 6. Sealing 1st 7. Sealing 2ND 8. Forming& outpout packages /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
