Automatic Injection Vial Powder Filling Machine Dosing and Stoppering Machine

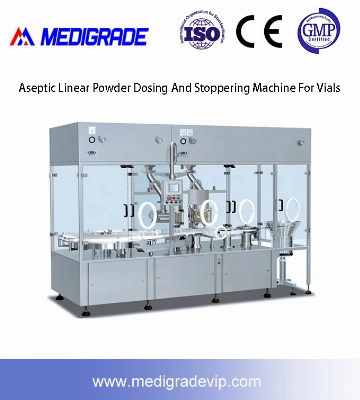

Aseptic linear powder dosing and stoppering machine for vialsMain descriptionThe machine is an intermittent linear motion filing mode for handing of the aseptic powder under dearing environment to complete powder dosing and stoppering and be transferred to the traying-off station or the down-stream machine. The powder is transferred to the filing chamber through pipe-line via aseptic valve.Technical parametersNameTechnical parametersModelMDR25MDR30MDR40Power3 phases,380V/50HzVacuum-660MPa, 14m³/hr-660MPa, 14m³/hr-Electric load3KW5KW6KWNoise ≤65db≤65db≤65dbOutput vials/hr150001800024000Filling Tolerance≤±2%≤±2%≤±2% Completion rate99.5%99.5%99.5% Dimension 2330*1320*18003300*1250*18003240*1100*1800 Feeding height 900±20mm 900±20mm 900±20mmWeiight950KG1100KG1100KG CapacityModelMDR25MDR30MDR407ml vial15000180002400010ml vial15000180002400015ml vial12000144001920020ml vial12000144001920025ml vial10000120001580030ml vial100001200015800Machine featuresIntermittent linear motion and PLC controlled operation, 7-30ml vial sizes applicable.Fallen vial rejected, no vial no filling no stoppering combined with safety alarm functions.Simple construction, fine finishing with long life-time.Very high filling accuracy, Min. tolerance ≤ +2%.Gentle stoppering ensures no stopper jumping during stoppering, Successfu rate ≥99.9%.Easier operation via touch screen.Multi container sizes applicable, less changing sizeparts.Machine operation be possible in individual or synchronized.RABS, CRABS or ISOLATOR system integrated possible.If you are interested in this, please contact me: Nana ZhangShanghai Medigrade Industry Co.,LtdWaigaoqiao Free Trade Zone, Shanghai,China. 200137   medigrade.en.made-in-china.com  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
