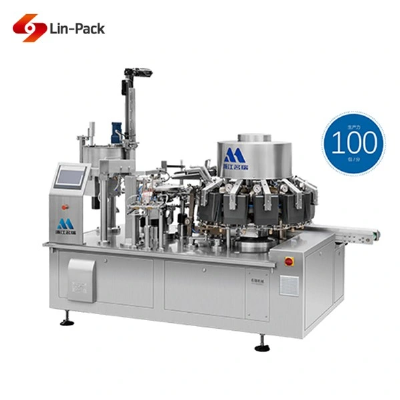

High Speed Automatic Bean Pulses Pouch Rotary Vacuum Packing Machine

Product Description:ModelMR8-240ZKWorking PositionsEight PositionsPouch TypeFour-side Sealed Bags, stand-up pouches, zipper bags, three-side sealed bags, paper bags, etc.Capacity40-55 bags/minBag SizeWidth:120~240mm   Length:150-320mmFilling Volume20-2000g(Depend on type of products)Dimension2500*1550*1600mm(L*W*H)Weight2200KGSCompress air requirement≥0.6m³/min supply by userApplication:Puffed food, candy, biscuit, peanut, cookies, pistachio, crystal candy, brown sugar, daily cpmmodities, cooked food and picklesFeatures and Characteristics:1. The machine can pack different products which need vacuum packing2. Automatic rotary vacuum packaging consists of filling system and vacuum system. The former is intermittent,the latter Incessant3. Quick change-over, the height of automatic bag feeding device can be adjusted automatical4. Comply with the sanitation requirements of food processing machines. Materials contact parts adopt 304 stainlesssteels, or other materials complying with food hygiene requirements to ensure food hygine and safety5. The machine is easy to wash down6. The machine adopts premade pouches with a complete pattern a high-quality sealing, resulting in improved productquality and grades7. Easy to operate The machine adopts PLC and POD(touch screen) electrical control system, with a friendly man-machineinterface. No Sealing will happen if no filling occurs, causing bags not filled to be recycled, thus no bags wasted8. Sealing temperature detection. Alarm system will be started, if heating pipe is damagedWork Process:Pouch Type:Main Standard Equipment Part:1. Date printer 2. PLC control system 3. Pouch opening devices4. Vibrator device5. Cylinder 6. Magnetic valve7. Temperature controller8. Vacuum pump 9. Frequency convertor 10. Output systemOptional Configuration:material weighing filling machines, work platform, weight checker, material elevator, finished product conveyor, metal detector If you have any questions, pls feel free to contact me. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
