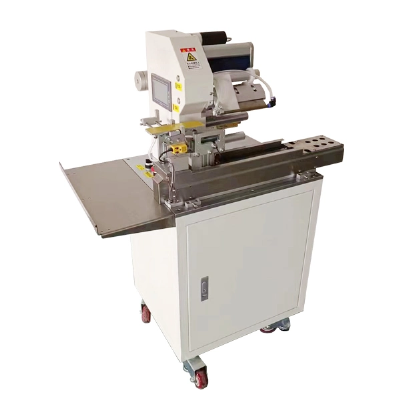

Electric Wire Cable Tube Folding Labeling Machine

electric wire cable tube folding labeling machine Technical parametersModel KLP-1181-6power supply220V/50HZ,0.25kwLabeling accuracy±0.1-0.2mm (excluding product and label errors)Labeling speed1800-3600pcs/h (related to product size)Applicable product sizewire diameter 2~10mm (others can be customized)Applicable label sizelength: 5mm~45mm (others can be customized);, width (folding direction): 40mm~160mmMachine sizeabout 580mm×680mm×1000mm (length×width×height)Film Roll diameter outer diameter 240mm, inner diameter 76mmMachine weight86kgs Air pressure0.4-0.6Mpa This machine can fold and label wire products; it is suitable for round/elliptical/flat wires, such as electric wires, cables, optical fibers, data cables, power cables, candy bars, jelly, rubber hoses, hoses, braided tubes etc, stick a self-adhesive label folded in half. Only need to put the wire into the mold of the labeling machine to fix it, and the equipment will automatically send out the label to achieve half-fold labeling. The accuracy is plus or minus 0.1-0.2mm. The efficiency of labeling is greatly improved, which is 3 times that of manual labeling.Process of labeling:Start the equipment--peel off the label from the equipment--send the label to the label-absorbing board--manually put the wires on the clamping position--automatically align and fold the wire and the label-absorbing plate--automatically align the label--manually off the assembly lineScope of applicationApplicable industries: electronics, wires, electrical appliances, electromechanical, used for earphone cables, USB cables, power cables, air pipes, water pipes, etc.; Applicable labels: self-adhesive labels, self-adhesive films; electronic supervision codes, barcodes, etc.; Application examples: earphone cable labeling, power cable labeling, optical fiber cable labeling, cable labeling, water pipe, air pipe labeling, warning label labeling machine, etc./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
