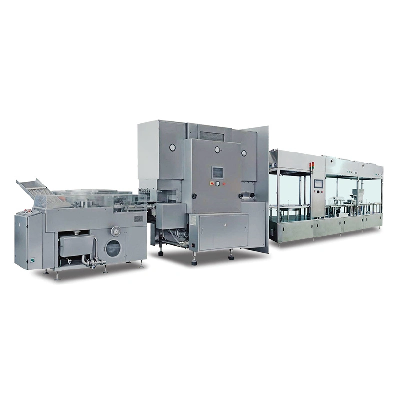

Automatic Cartridge Filling Capping and Sealing Production Line Machine

Automatic Cartridge Filling Capping and Sealing Production Line Machine   IVEN cartridge filling production line (carpule filling production line) welcomed a lot for our customers to produce cartridges/carpules with bottom stoppering, filling, liquid vacuuming (surplus liquid), cap adding, capping after drying and sterilizing. Full safety detection and intelligent control to guarantee stable production, like no cartridge/carpule, no stoppering, no filling, auto material feeding when it is running out.  Working ProcessCartridges/Carpules feeding wheel after sterilization ---- Bottom part stoppered --- Conveyed to filling station --- Filled the 2nd time to full and vacuuming the redundant solution --- Conveyed to the capping station --- Conveyed to cartridges/carpules collection plate.Technical Features1. Adopt the world's latest technology, strictly make in accordance with GMP standard with compact structure.2. Finish stoppering, filling, capping automatically.3. All parts contact with medical solution adopt 316L S/S or the material which has no chemical change with drugs.4. Servo motor operating parameters can be set freely according to filling volume and running speed, efficiently enhance filling precision.5. Easy to change the specification part.6. No cartridge/carpule no stoppering; no cartridge/carpule no filling; no cartridge/carpule no capping.7. Auto detection function for stopper and aluminium cap.8. Auto shutdown protection when open the door.9. The reset button is available.ConfigurationNoItemBrand & Material1.Servo motorFamous brand2.Touch ScreenMitsubishi3.Ball screwABBA4.BreakerFamous brand5.RelayPanasonic6.Filling pumpCeramic pump7.Switching power supplyMingwei8.Solution contact part316LTechnical ParametersNoItemDescription1.Applicable range1-3 ml cartridge2.Production capacity80-100 cartridges/min3.Filling heads44.Vacuum consumption15m³/h, 0.25Mpa5.Stoppering heads46.Capping heads47.Power4.4kw  380V   50Hz/60Hz8.Filling accuracy≤ ± 1%9.Dimension( L*W*H)3430×1320×1700mm/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
